NT Tool Corporation WFL/MT Series Quick Change Tapping Chuck
Manufacturer: NT TOOL CORPORATION
Model: WFL/MT Series
Features
- Short length and small diameter
- Quick-change
- Length compensation allows for feed discrepancies between spindle and tap

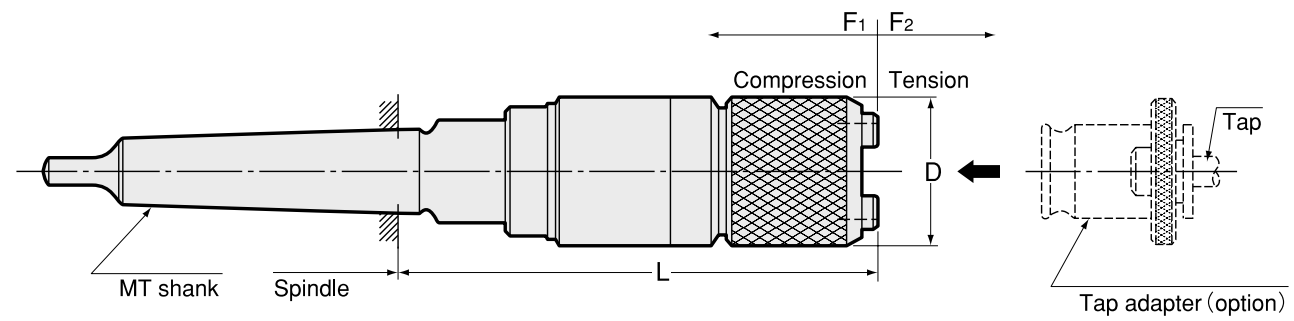

Specifications
| Model | Tap Size | Adapter Size | Axial Compensation | Compression (F1) | Tension (F2) | D | L | kg |
|---|---|---|---|---|---|---|---|---|
| WFL030-30 /MT1 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0 | 30 | 0 | 23 | 120 | 0.3 |
| WFL030-20 /MT1 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0 | 20 | 10 | 23 | 110 | 0.3 |
| WFL030-15 /MT1 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0 | 15 | 15 | 23 | 105 | 0.3 |
| WFL030-0 /MT1 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0 | 0 | 0 | 23 | 95 | 0.3 |
| WFL140-40 /MT2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4 | 1 | 40 | 20 | 40 | 35 | 153 | 1.3 |
| WFL140-30 /MT2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4 | 1 | 30 | 30 | 20 | 35 | 143 | 1.2 |
| WFL140-20 /MT2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4 | 1 | 20 | 20 | 10 | 35 | 133 | 1.2 |
| WFL140-0 /MT2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4 | 1 | 0 | 0 | 0 | 35 | 123 | 1.2 |
| WFL240-40 /MT3 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 40 | 50 | 40 | 50 | 177 | 1.7 |
| WFL240-30 /MT3 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 30 | 40 | 30 | 50 | 157 | 1.7 |
| WFL240-20 /MT3 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 20 | 30 | 20 | 50 | 137 | 1.7 |
| WFL240-0 /MT3 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 0 | 0 | 0 | 50 | 117 | 1.7 |
| WFL340-40 /MT4 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 40 | 70 | 50 | 70 | 224 | 4.4 |
| WFL340-30 /MT4 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 30 | 60 | 40 | 70 | 204 | 4.4 |
| WFL340-20 /MT4 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 20 | 50 | 30 | 70 | 184 | 4.4 |
| WFL340-0 /MT4 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 0 | 0 | 0 | 70 | 164 | 4.4 |
