NT Tool Corporation WFL/Tr Series Quick Change Tapping Chuck
Manufacturer: NT TOOL CORPORATION
Model: WFL/Tr Series
Features
- Short length and small diameter
- Quick-change
- Length compensation allows for feed discrepancies between spindle and tap

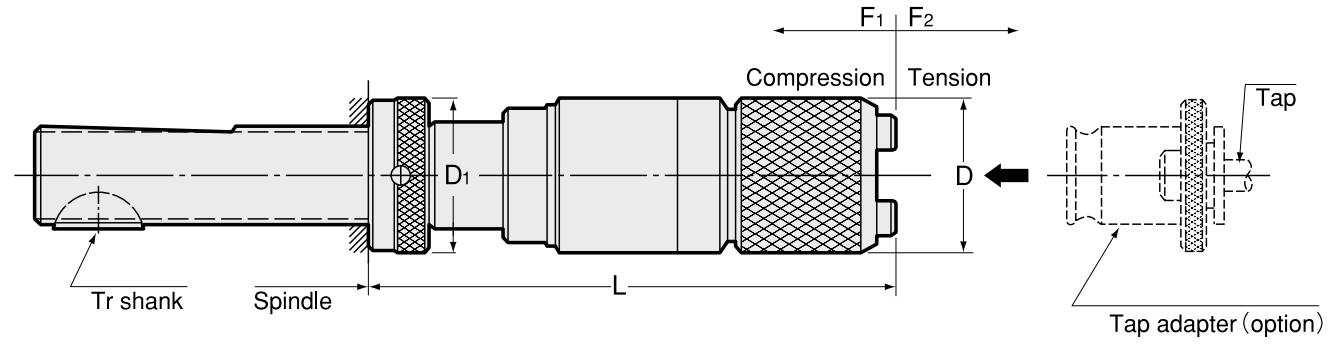

Specifications
| Model | Tap Size | Adapter Size | Axial Compensation | Compression (F1) | Tension (F2) | D | D1 | L | kg |
|---|---|---|---|---|---|---|---|---|---|
| WFL030-30 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0 | 30 | 0 | 23 | 25 | 126 ~ 156 | 0.3 |
| WFL030-20 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0 | 20 | 0 | 23 | 25 | 118 ~ 148 | 0.3 |
| WFL030-15 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0 | 15 | 0 | 23 | 25 | 111 ~ 141 | 0.3 |
| WFL030-0 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0 | 0 | 0 | 23 | 25 | 96 ~ 126 | 0.3 |
| WFL32.40-40 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 40 | 20 | 40 | 32 | 32 | 158 ~ 188 | 0.7 |
| WFL32.40-20 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 20 | 10 | 20 | 32 | 32 | 138 ~ 168 | 0.7 |
| WFL32.40-0 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 0 | 0 | 0 | 32 | 32 | 118 ~ 148 | 0.7 |
| WFL140-40 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 40 | 40 | 40 | 35 | 32 | 158 ~ 188 | 1.0 |
| WFL140-30 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 30 | 30 | 20 | 35 | 32 | 148 ~ 178 | 1.0 |
| WFL140-20 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 20 | 20 | 10 | 35 | 32 | 138 ~ 168 | 1.0 |
| WFL140-0 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 0 | 0 | 0 | 35 | 32 | 118 ~ 148 | 1.0 |
| WFL40.40-40 | M6 ~ M18 U1/4 ~ U3/4 | 1 | 40 | 40 | 40 | 40 | 40 | 175 ~ 207 | 1.4 |
| WFL40.40-20 | M6 ~ M18 U1/4 ~ U3/4 | 1 | 20 | 20 | 20 | 40 | 40 | 155 ~ 185 | 1.4 |
| WFL40.40-0 | M6 ~ M18 U1/4 ~ U3/4 | 1 | 0 | 0 | 0 | 40 | 40 | 135 ~ 165 | 1.4 |
| WFL240-30 | M8 ~ M22 U3/8 ~ U7/8 | 2 | 30 | 50 | 40 | 50 | 50 | 182 ~ 214 | 3.6 |
| WFL240-20 | M8 ~ M22 U3/8 ~ U7/8 | 2 | 20 | 40 | 30 | 50 | 50 | 162 ~ 194 | 3.6 |
| WFL240-10 | M8 ~ M22 U3/8 ~ U7/8 | 2 | 10 | 30 | 20 | 50 | 50 | 142 ~ 172 | 3.6 |
| WFL240-0 | M8 ~ M22 U3/8 ~ U7/8 | 2 | 0 | 0 | 0 | 50 | 50 | 122 ~ 152 | 3.6 |
| WFL340-30 | M16 ~ M38 U5/8 ~ U1 3/8 | 3 | 30 | 70 | 50 | 70 | 50 | 230 ~ 260 | 5.2 |
| WFL340-20 | M16 ~ M38 U5/8 ~ U1 3/8 | 3 | 20 | 60 | 40 | 70 | 50 | 210 ~ 240 | 5.2 |
| WFL340-10 | M16 ~ M38 U5/8 ~ U1 3/8 | 3 | 10 | 50 | 30 | 70 | 50 | 190 ~ 220 | 5.2 |
| WFL340-0 | M16 ~ M38 U5/8 ~ U1 3/8 | 3 | 0 | 0 | 0 | 70 | 50 | 170 ~ 200 | 5.2 |
