NT Tool Corporation WFLK･J/MT Series Quick Change Tapping Chuck
Manufacturer: NT TOOL CORPORATION
Model: WFLK･J/MT Series
Features
- World’s shortest class projection length.Perfect for turret machine.
- Quick-change
- Length compensation allows for feed discrepancies between spindle and tap.
Specifications

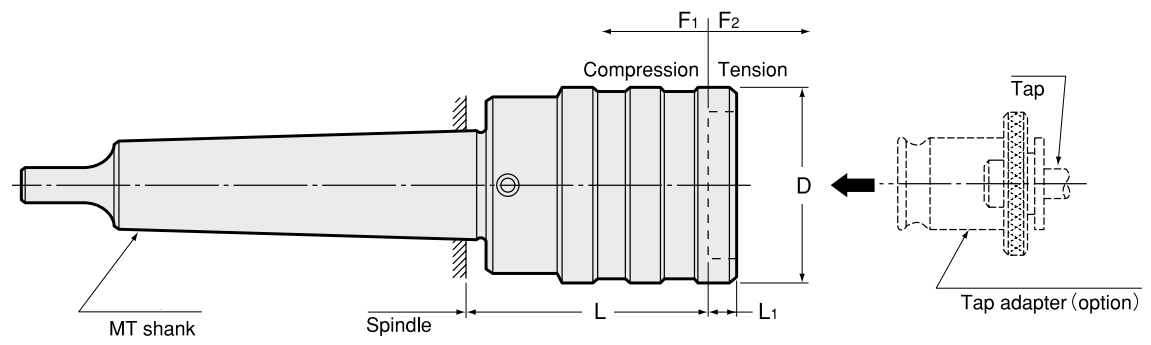

| Model | Tap Size | Adapter Size | Compression (F1) | Tension (F2) | D | L1 | L | kg |
|---|---|---|---|---|---|---|---|---|
| WFLK012J-3 /MT2 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 3 | 9 | 25.5 | 4 | 40 | 0.2 |
| WFLK012J-0 /MT2 | 0 | 0 | 9 | 25.5 | 4 | 37 | 0.2 | |
| WFLK115J-3 /MT2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 3 | 12 | 36 | 4.5 | 41.5 | 0.3 |
| WFLK115J-0 /MT2 | 1 | 0 | 12 | 36 | 4.5 | 38.5 | 0.3 | |
| WFLK115J-3 /MT3 | 1 | 3 | 12 | 36 | 4.5 | 41.5 | 0.3 | |
| WFLK115J-0 /MT3 | 1 | 0 | 12 | 36 | 4.5 | 38.5 | 0.3 | |
| WFLK225J-12.5 /MT3 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 12.5 | 12.5 | 53 | 5.5 | 70 | 0.9 |
| WFLK225J-0 /MT3 | 2 | 0 | 20 | 53 | 5.5 | 57.5 | 0.9 | |
| WFLK225J-12.5 /MT4 | 2 | 12.5 | 12.5 | 53 | 5.5 | 71 | 1.2 | |
| WFLK225J-0 /MT4 | 2 | 0 | 20 | 53 | 5.5 | 58.5 | 1.2 | |
| WFLK340J-20 /MT4 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 20 | 20 | 78 | 6 | 104 | 2.4 |
| WFLK340J-0 /MT4 | 3 | 0 | 40 | 78 | 6 | 84 | 2.4 | |
| WFLK340J-20 /MT5 | 3 | 20 | 20 | 78 | 6 | 104.5 | 3.3 | |
| WFLK340J-0 /MT5 | 3 | 0 | 4e0 | 78 | 6 | 84.5 | 3.3 | |
| WFLK445J-22.5 /MT5 | M22 ~ M48 U7/8 ~ U1 3/4 Pipe (PT, PS, PF) 3/4 ~ 1 1/2 | 4 | 22.5 | 22.5 | 96 | 13 | 115.5 | 4.6 |
| WFLK445J-0 /MT5 | 4 | 0 | 4 | 96 | 13 | 93 | 4.6 | |
| WFLK445J-22.5 /MT6 | 4 | 22.5 | 22.5 | 96 | 13 | 117.5 | 7.0 | |
| WFLK445J-0 /MT5 | 4 | 0 | 4 | 96 | 13 | 95 | 7.0 |
