NT Tool Corporation WFLK･J/Tr Series Quick Change Tapping Chuck
Manufacturer: NT TOOL CORPORATION
Model: WFLK･J/Tr Series
Features
- World’s shortest class projection length.Perfect for turret machine.
- Quick-change
- Length compensation allows for feed discrepancies between spindle and tap.
Specifications

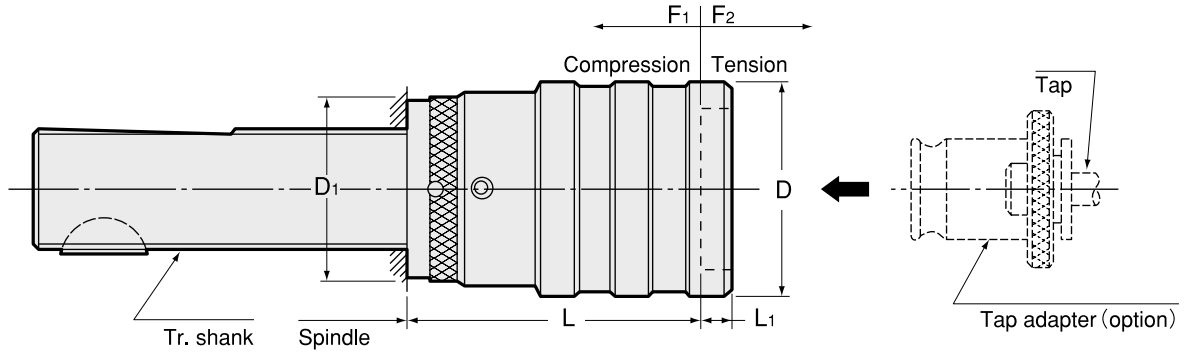

| Model | Tap Size | Adapter Size | Compression (F1) | Tension (F2) | D | D1 | L1 | L | kg |
|---|---|---|---|---|---|---|---|---|---|
| WFLK012J-3 /Tr.16×1.5 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0 | 9 | 25.5 | 25 | 4 | 45 ~ 75 | 0.3 |
| WFLK012J-0 /Tr.16×1.5 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0 | 9 | 25.5 | 25 | 4 | 42 ~ 72 | 0.3 |
| WFLK115J-3 /Tr.16×1.5 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 3 | 12 | 36 | 25 | 4.5 | 46.5 ~ 76.5 | 0.4 |
| WFLK115J-0 /Tr.16×1.5 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 3 | 12 | 36 | 25 | 4.5 | 43.5 ~ 73.5 | 0.4 |
| WFLK225J-12.5 /Tr.20×2 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 12.5 | 12.5 | 53 | 32 | 5.5 | 62.5 ~ 92.5 | 1.1 |
| WFLK225J-12.5 /Tr.20×2 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 12.5 | 12.5 | 53 | 40 | 5.5 | 75 ~ 107 | 1.1 |
| WFLK225J-12.5 /Tr.20×2 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 12.5 | 12.5 | 53 | 50 | 5.5 | 85 ~ 115 | 1.1 |
| WFLK340J-20 /Tr.28×2 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 20 | 40 | 78 | 50 | 6 | 90 ~ 129 | 2.3 |
| WFLK340J-0 /Tr.28×2 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 0 | 0 | 70 | 50 | 6 | 72 ~ 102 | 2.3 |
| WFLK445J-22.5 /Tr.36×2 | M22 ~ M48 U7/8 ~ U1 3/4 Pipe (PT, PS, PF) 3/4 ~ 1 1/2 | 4 | 22.5 | 22.5 | 96 | 56 | 7 | 121 ~ 160 | 4.0 |
| WFLK445J-22.5 /Tr.36×2 | M22 ~ M48 U7/8 ~ U1 3/4 Pipe (PT, PS, PF) 3/4 ~ 1 1/2 | 4 | 22.5 | 22.5 | 96 | 62 | 7 | 137.5 ~ 175.5 | 4.0 |
| WFLK445J-22.5 /Tr.36×2 | M22 ~ M48 U7/8 ~ U1 3/4 Pipe (PT, PS, PF) 3/4 ~ 1 1/2 | 4 | 22.5 | 22.5 | 96 | 66 | 7 | 150 ~ 180 | 4.0 |
| WFLK445J-22.5 /Tr.36×2 | M22 ~ M48 U7/8 ~ U1 3/4 Pipe (PT, PS, PF) 3/4 ~ 1 1/2 | 4 | 22.5 | 22.5 | 96 | 70 | 7 | 160 ~ 190 | 4.0 |
