NT Tool Corporation WFLP/MT Series Quick Change Tapping Chuck

Manufacturer: NT TOOL CORPORATION
Model: WFLP/MT Series

Features

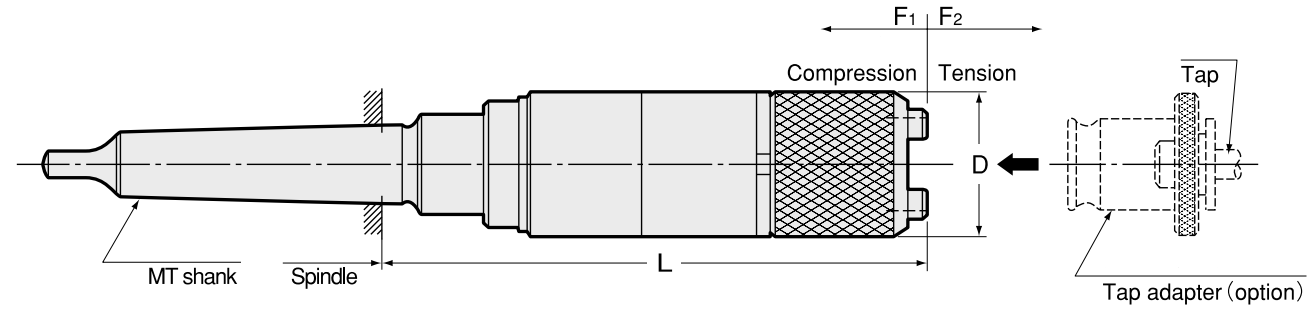

Model	Tap Size	Adapter Size	Radial Float	Compression (F1)	Tension (F2)	D	L	kg
WFLP030-30 /MT1	M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8)	0	0.25	30	0	23	144	0.4
WFLP030-20 /MT1	M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8)	0	0.25	20	10	23	132	0.4
WFLP030-15 /MT1	M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8)	0	0.25	15	15	23	122	0.4
WFLP030-0 /MT1	M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8)	0	0.25	0	0	23	112	0.4
WFLP140-40 /MT2	M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4	1	0.5	40	40	32	168	0.8
WFLP140-30 /MT2	M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4	1	0.5	30	30	32	158	0.8
WFLP140-20 /MT2	M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4	1	0.5	20	20	32	148	0.8
WFLP140-0 /MT2	M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4	1	0.5	0	0	32	138	0.8
WFLP240-40 /MT3	M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2	2	1.0	50	50	50	201	2.1
WFLP240-30 /MT3	M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2	2	1.0	40	40	50	191	2.1
WFLP240-20 /MT3	M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2	2	1.0	30	30	50	161	2.1
WFLP240-0 /MT3	M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2	2	1.0	0	0	50	151	2.1
WFLP340-40 /MT4	M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8	3	1.5	70	50	70	258	5.6
WFLP340-30 /MT4	M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8	3	1.5	60	40	70	240	5.6
WFLP340-20 /MT4	M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8	3	1.5	50	30	70	220	5.6
WFLP340-0 /MT4	M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8	3	1.5	0	0	70	218	5.6
