NT Tool Corporation WFLP/Tr Series Quick Change Tapping Chuck
Manufacturer: NT TOOL CORPORATION
Model: WFLP/Tr Series
Features
- Short length and small diameter
- Quick-change
- Length compensation allows for feed discrepancies between spindle and tap.
- Ragial Float
- Corrects alignment discrepancies between pre-drilled hole and tap.
Specifications

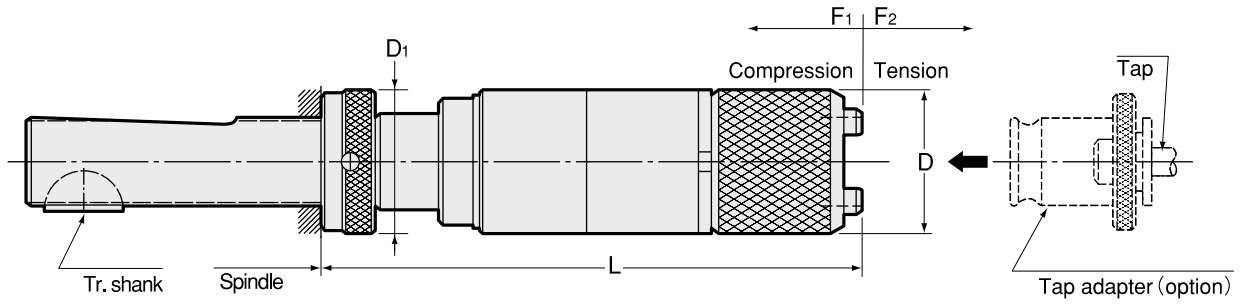

| Model | Tap Size | Adapter Size | Radial Float | Compression (F1) | Tension (F2) | D | D1 | L | kg |
|---|---|---|---|---|---|---|---|---|---|
| WFLP030-30 /Tr.16×1.5 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0.25 | 30 | 0 | 23 | 25 | 148 ~ 178 | 0.4 |
| WFLP030-20 /Tr.16×1.5 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0.25 | 20 | 10 | 23 | 25 | 139 ~ 168 | 0.4 |
| WFLP030-15 /Tr.16×1.5 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0.25 | 15 | 15 | 23 | 25 | 133 ~ 163 | 0.4 |
| WFLP030-0 /Tr.16×1.5 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 0.25 | 0 | 0 | 23 | 25 | 118 ~ 148 | 0.4 |
| WFLP32.40-40 /Tr.20×2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 0.5 | 40 | 40 | 32 | 32 | 173 ~ 203 | 0.9 |
| WFLP32.40-20 /Tr.20×2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 0.5 | 20 | 20 | 32 | 32 | 153 ~ 183 | 0.9 |
| WFLP32.40-0 /Tr.20×2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) | 1 | 0.5 | 0 | 0 | 32 | 32 | 133 ~ 163 | 0.9 |
| WFLP140-40 /Tr.20×2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4 | 1 | 0.75 | 40 | 40 | 35 | 40 | 158 ~ 188 | 1.2 |
| WFLP140-30 /Tr.20×2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4 | 1 | 0.75 | 30 | 30 | 35 | 40 | 143 ~ 173 | 1.2 |
| WFLP140-20 /Tr.20×2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4 | 1 | 0.75 | 20 | 20 | 35 | 40 | 128 ~ 158 | 1.2 |
| WFLP140-0 /Tr.20×2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4 | 1 | 0.75 | 0 | 0 | 35 | 40 | 118 ~ 148 | 1.2 |
| WFLP240-40 /Tr.28×2 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 1.0 | 50 | 50 | 50 | 50 | 206 ~ 234 | 2.3 |
| WFLP240-30 /Tr.28×2 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 1.0 | 40 | 40 | 50 | 50 | 184 ~ 214 | 2.3 |
| WFLP240-20 /Tr.28×2 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 1.0 | 30 | 30 | 50 | 50 | 162 ~ 192 | 2.3 |
| WFLP240-0 /Tr.28×2 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 1.0 | 0 | 0 | 50 | 50 | 142 ~ 172 | 2.3 |
| WFLP340-40 /Tr.36×2 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 1.5 | 70 | 50 | 70 | 50 | 224 ~ 254 | 4.4 |
| WFLP340-30 /Tr.36×2 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 1.5 | 60 | 40 | 70 | 50 | 204 ~ 234 | 4.4 |
| WFLP340-20 /Tr.36×2 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 1.5 | 50 | 30 | 70 | 50 | 184 ~ 214 | 4.4 |
| WFLP340-0 /Tr.36×2 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 1.5 | 0 | 0 | 70 | 50 | 164 ~ 194 | 4.4 |
