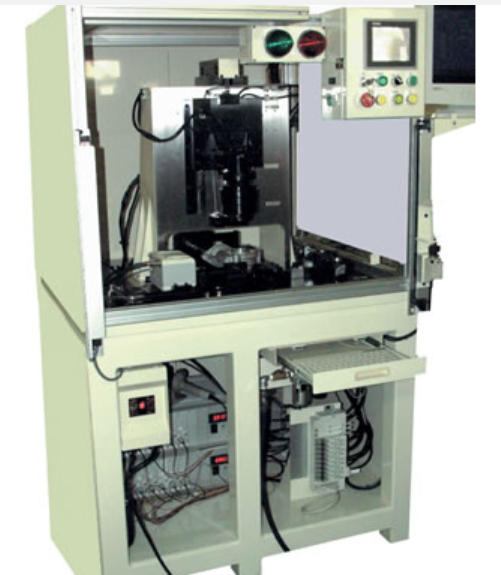

Obishi Keiki Seisakusho SA-164 Housing Internal Diameter Automatic Measuring Equipment

Made in Japan

Manufacturer : Obishi Keiki Seisakusho

Model : SA – 164

System Outline

This Equipment is used for automatic measurement of internal diameter of hole drilled housing block or space position between Axis.
High accuracy Measurement of Housing block orthogonal Axis which has hitherto been difficult, has been realize by our originally developed measurement technology, with repetition accuracy of less than 3μm.
It can measure orthogonal Axis hole diameter, Axis interval distance, inclnination, and other space measurements at the same time.

Specification Outline

  • Power : AC200V 50/60Hz 1.5KVA
  • Air Source : 0.4MPa (4kg/cm2) or more compressed air.
  • Repetition Accuracy : 3μm
  • Cycle Time : 20 seconds
  • Applicable Type of Machines : 15 types
  • Option : Marking Function, Rank Separation Function, Barcode Reader
