OCHIAI

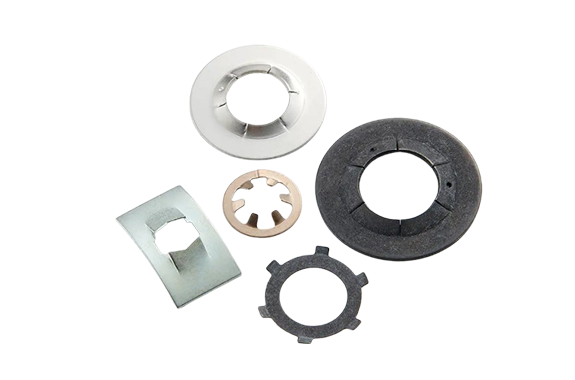

Ochiai Push Nuts Self-locking Internal Nut RPN

Manufacturer: Ochiai Co., Ltd.
Model: RPN
Features
- By fitting the Self-locking Nuts on the shaft (groove) in the thrust direction that is parallel with the shaft (groove), their prongs bite into the retained part so as to prevent dropping off.
- There is no need of machining a groove and the Nuts can be freely positioned and fixed.
- It is structured so that its prongs bite into the shaft.

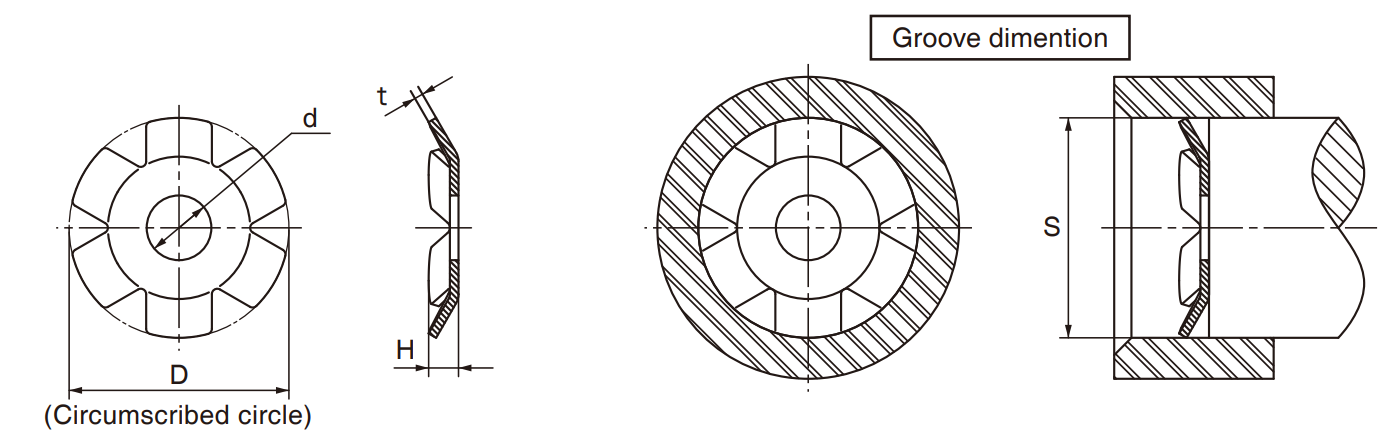

Dimension
- Material = Carbon spring steel
- Hardness = 40 through 50HRC
- Finish = Phosphate coating (ACP)
