OCHIAI

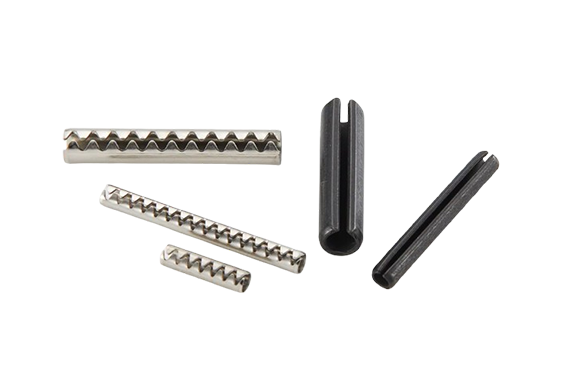

Ochiai Spring Pins For General Purpose SPP

Manufacturer: Ochiai Co., Ltd.
Model: SPP
Features
- Used for easy tightening, and positioning.
- It prevents falling out the maiting hole with gripping force.
- The Pin should be doubled if you want to increase the shear load. (The resultant load is given by adding the shear load of inner pin and that of outer pin.)

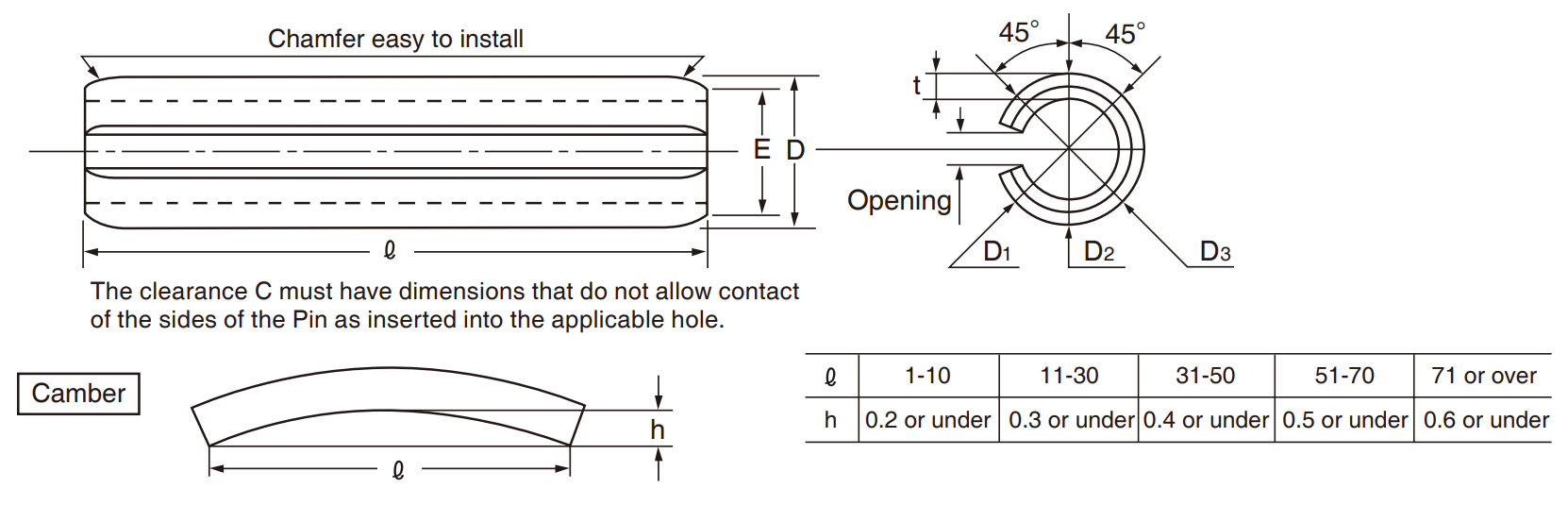

Dimension
- Material = Carbon spring steel
Finish = Phosphate coating (ACP) - Hardness = 40 through 50HRC (40 through 50HRC only for Nominal dia. 13mm)
- Material = Stainless steel for spring (SUS304-CS)
Finish = N/A
