Manufacturer: Ochiai Co., Ltd.
Model: DB

Features

• Load is introduced by bending and flexing a flat washer on a conical (dish) shape.
• Higher load can be acquired by smaller deflection.
• Although this type provides higher load than the Curved and Wave Washers, the resultant load has larger variations because of larger load rate.

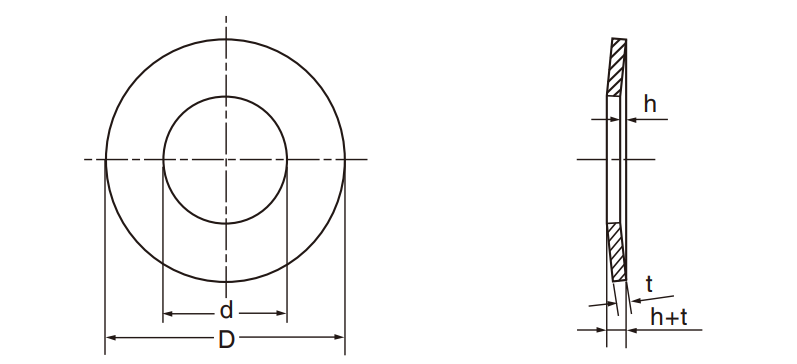

Dimension

• Material = Carbon spring steel
• Hardness = 40 through 50HRC
• Finish = Phosphate coating (ACP)
