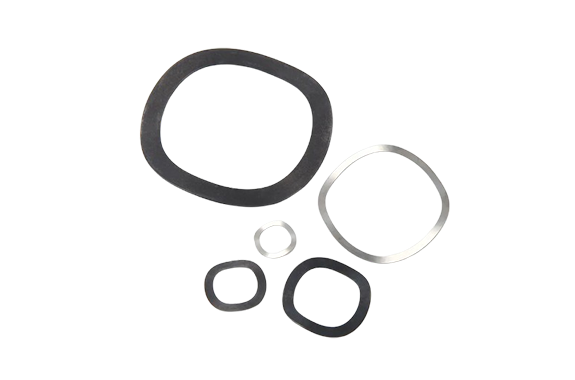

Ochiai Wave Washers And Others Wave Washer WW

Manufacturer: Ochiai Co., Ltd.
Model: WW
Features
- Load is introduced by bending and flexing a flat washer on a waved shape. The waves are available from 2.
- This type provides higher load than the Curved Washer.
Dimension
- Material = Carbon spring steel
- Hardness = 40 through 50HRC
- Finish = Phosphate coating (ACP)
- Notes:

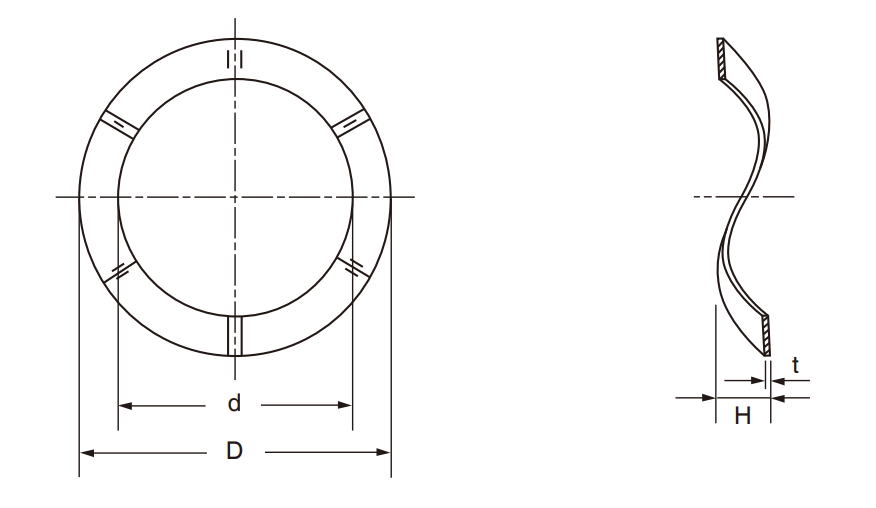

1. The value d is the diameter of inscribed circle. The value D is the diameter of circumscribed circle.

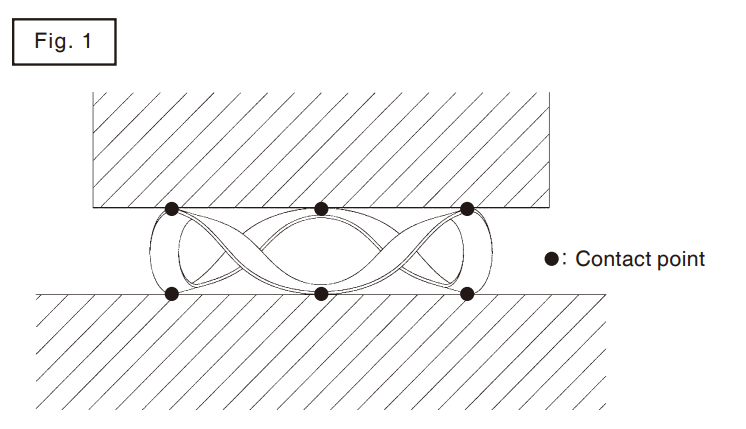

2. The value H is a dimension when three threads are flush with each other with parallel two planes compressed (see Fig. 1).
