Okaya Seiritsu Engineering Co.

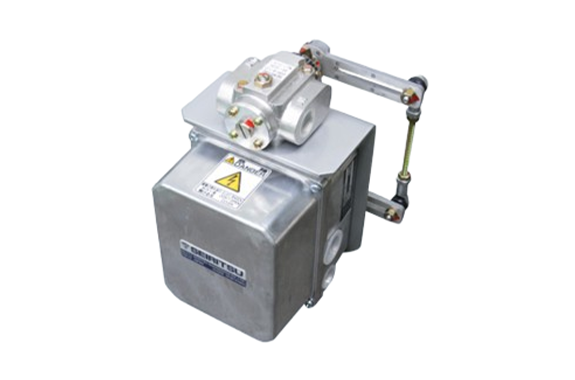

Okaya CMP Positioning Motor
Manufacturer: Okaya Seiritsu Engineering Co., Ltd.
Model: CMP
Features
- ＜High-speed operation available despite high torque＞
＜Positioning available from 0 to 90 degrees in response to incoming electric signals of 4 to 20 mA＞
＜Includes reverse switch＞
＜Free mounting direction＞
Specifications
| Input signal | 4 to 20 mA (resistive load: 100 ohms) |
|---|---|
| Operation timing (90 degrees) | 32s(50Hz)、27s(60Hz) |
| Rated torque | 20N・m |
| Operation angle | 90° |
| Power supply | 100/110、200/220VAC、50/60Hz |
| External dimensions | (Approx.) H150 x W125 x D165 |
