Okaya Seiritsu Engineering Co.

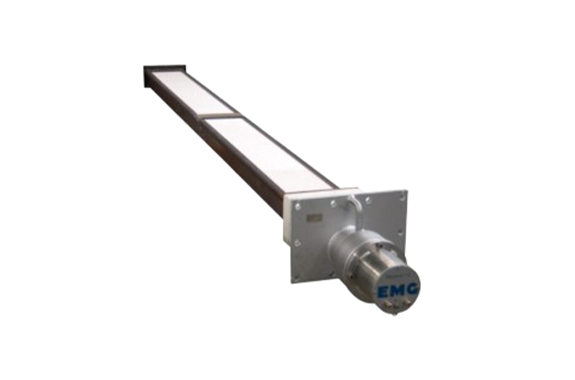

Okaya IMM2, IMH2, IMU2 High-Temperature Electromagnetic Induction Sensor
Manufacturer: Okaya Seiritsu Engineering Co., Ltd.
Model: IMM2, IMH2, IMU2
Features
- Two electromagnetic induction sensors are arranged on the same plane, positioned perpendicular to the pass level and symmetrically about the line center, to perform measurements.
The system offers high-precision measurement at high temperatures, immunity to steam shocks inside the furnace, and maintenance-free operation, with a proven track record of 300 units worldwide.
Specifications
| IMM2 | IMH2 | IMU2 | |
|---|---|---|---|
| Maximum furnace temperature | 650°C | 950°C | 1100°C |
| Board width range | 500~2850mm coil position dependent. | 500~2850mm coil position dependent. | 500~2850mm coil position dependent. |
| Center detection accuracy | ±5mm | ±5mm | ±5mm |
