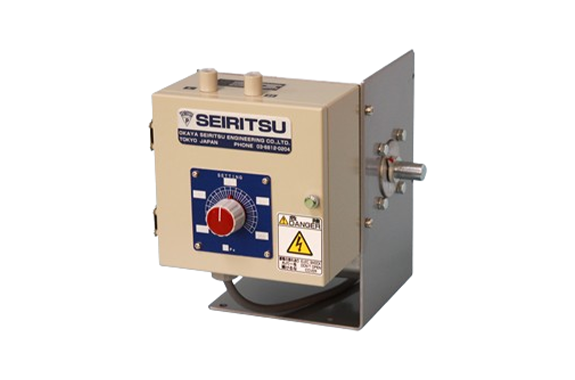

Manufacturer: Okaya Seiritsu Engineering Co., Ltd.
Model: PEC-50

Features

• ＜Built-in transducer and controller＞
  The cost of instrumentation can be reduced as neither a transducer or a controller is required for the pressure and flow rate. Control can be established by merely directly inputting the process values needed for that control.
  ＜Simple installation＞
  Mechanical work merely involves linking the operating axis of the device to the operating end such as a butterfly valve and piping for the input pressure.
  No other electrical work required than wiring for the power supply.
  ＜Extensive built-in adjustment functions＞
  The controller has a wide variety of adjustment functions for speed differences when opening/closing, operating speed, proportional speed action band, and dead zone and others, and accordingly provides stable control performance without overshooting or hunting.
  ＜Long-life design＞
  The controller has an extraordinary long-life cycle as it is equipped with robust gears as well as a non-contact motor drive relay (Solid State Relay (SSR)).
  ＜Various models available＞
  The appropriate model can be selected from the various models available depending on the required operational force.
  The appropriate pressure-sensitive parts can be selected depending on the input specifications such as pressure and flow rate, thus allowing a variety of combinations.
  ＜Small and lightweight body with robust aluminum structure＞

Specifications
