Okaya Seiritsu Engineering Co.

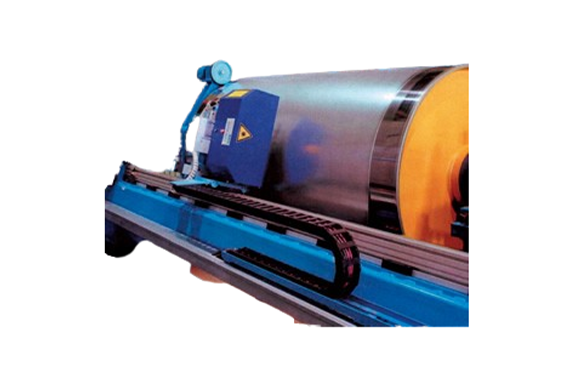

Okaya SORM Laser Optical Surface Roughness Measurement Device
Manufacturer: Okaya Seiritsu Engineering Co., Ltd.
Model: SORM
Features
- Until now, with contact-type surface roughness measuring instruments, operators had to either stop the production line or take samples for offline gauge measurements in the lab.
- However, the SORM 3plus has made inline measurements possible.
- This not only improves steel plate quality but also makes it easier to determine the timing for roller replacements.
Specifications
| Measurement accuracy | Ra : +/- ０.２μｍ RPc : +/- ２０％ | |
|---|---|---|
| Measured length | Max 300 mm (adjustable) | |
| Distance between measurement points | Standard 5μm (adjustable) | |
| Strip speed | Max 2400m/min | |
