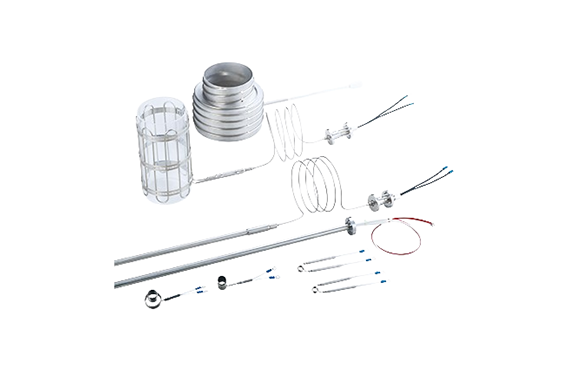

Okazaki Micro Heaters

Manufacturer: Okazaki Manufacturing Company

Features

Wider Application Range
Since the outer diameter is small, our heaters can be installed onto a small heating body. In addition, since the structure is a sheath type, our heaters are tolerant for high temperature and high pressure, and can be used for wide temperature range of -200 to 650℃.
Uniformity
Because we can manufacture a longer heat generating part than the ones of other heaters, wider range can be heated/pre-heated, providing effects similar to heating sheets.
Easier Handling
The minimum bending radius is 2.5 times longer than the outer diameter of the sheath. Our heaters can be easily installed in various places at a site.
Longer Product Life
Our heaters have a longer life since they are insulated and sealed with magnesium oxide, which is chemically stable, to alleviate insulation resistance deterioration and accidents of disconnection, etc.
Mechanical Strength/Pressure Resistance
Our heaters can be used even in the conditions of a place with vibration, corrosion atmosphere, etc.
Outer Diameter of Sheath Available
We can manufacture the outer diameter of the sheath of 1.0 to 8.0 mm.

Core number	Symbol	Sheath outer diameter （mm）	Resistance value Ω/ｍ		JIS support	Sheath thickness （mm）	Core wire diameter (mm)	Sheath max. length (m)	Approx. weight (g/m)	Max. rated voltage recommended value (V)	Withstand voltage inspection value （V/ 1min.）	Heat generating body allowable temperature recommended value （℃）
Core number	Symbol	Sheath outer diameter （mm）	NC Nickel Chrome	NI Nickel	JIS support	Sheath thickness （mm）	Core wire diameter (mm)	Sheath max. length (m)	Approx. weight (g/m)	Max. rated voltage recommended value (V)	Withstand voltage inspection value （V/ 1min.）
2	B	1.6	46.5	3.8	×	0.17	0.26	100	10	100	300	500
	XA	1.9	33.0	－	×	0.20	0.31	90	17	100	500	500
	C	2.3	22.5	1.74	×	0.24	0.38	150	25	100	600	600
	XB	2.7	16.2	－	×	0.28	0.45	110	32	150	700	600
	D	3.2	11.5	0.9	×	0.33	0.53	140	45	150	800	650
	DH	3.2	28	－	○	0.33	0.34	140	45	200	1200	650
	XC	3.8	8.13	－	×	0.39	0.63	100	63	200	1000	650
	XD	3.8	20.2	－	○	0.39	0.39	100	63	300	1500	650
	E	4.8	5.1	0.4	○	0.49	0.79	63	100	300	1500	650
	EH	4.8	12.9	－	○	0.49	0.51	63	100	300	1500	650
	F	6.4	2.85	－	○	0.65	1.05	35	178	300	1500	650
	G	8.0	1.8	－	○	0.82	1.32	22	278	300	1500	650
1	A	1.0	26.9	－	×	0.17	0.24	100	4	100	450	500
	B	1.6	10.5	1.0	×	0.25	0.39	100	10	100	600	500
	XA	1.9	7.5	－	×	0.20	0.46	90	17	150	600	500
	C	2.3	5.12	0.5	×	0.24	0.56	150	25	150	800	600
	XB	2.7	3.65	－	×	0.28	0.66	110	32	300	900	600
	D	3.2	2.6	0.26	○	0.33	0.77	140	45	300	1500	650
	DH	3.2	5.6	－	○	0.33	0.53	140	45	300	1500	650
	XC	3.8	1.83	－	○	0.39	0.90	100	63	300	1500	650
	XD	3.8	4.13	－	○	0.39	0.62	100	63	300	1500	650
	E	4.8	1.15	0.125	○	0.49	1.10	63	100	300	1500	650
	F	6.4	0.68	－	○	0.65	1.47	35	178	300	1500	650

Note)

JIS support indicates JIS C3651. (JIS support does not include sheath material equivalent to Inconel.)
The testing value of the withstand voltage is 1,000 V/1 min. for the rated voltage of 150 V or lower, and 1,500 V/1 min. for over 150 V.
However, the voltage to ground is 300 V or lower.
If JIS support is required, please specify when needed.
Sheaths with Symbols A and G are not standard inventory items. Please check the delivery date when ordering.
For products other than JIS support, if the heater is composed of one core its outer diameter is φ3.2 or more, a rated voltage of 440 V can be used.
The sheath tip of the one-side terminal type micro heater is welded and sealed. If requested, the tip can be finished with the same diameter as the sheath.
