Osaka Denken Co.

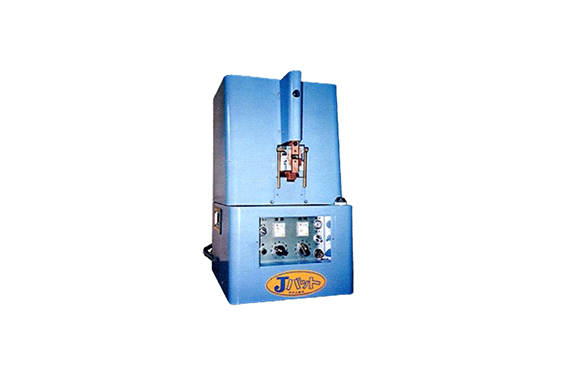

Osaka Denken J Butt Welder
Manufacturer: Osaka Denken Co., Ltd.
Features
- A butt welding device developed by Osaka Electric Research Institute that “eliminates the traditional soldering work”.
0.3~1.25mm2 of the thermoelectric wire can be butt welded. In addition, it controls the occurrence of burrs and is finished within the diameter of the material. - Moreover, it is an environmentally friendly machine because it does not use soldering.
Specifications
| Form | J-D1 |
|---|---|
| Power supply | 100/200V 50/60 Hz |
| Rated capacity | 2 KVA |
| Dimensions | D 330 x W 280 x H 500 mm |
| Weight | 3.5 kg |
| Capabilities | Butt welding of thermoelectric wires 0.3~1.25mm² is possible. (Features) Prevents burrs and finishes within the diameter of the material. |
| Control method | Sequencer/Solenoid Control |
| Operation | (1) Setting: welding conditions (power supply, energization time, pressure) (2) Clamping of workpiece (manual) (3) Operation (press the push button) (4) Weld annealing completed (5) Clamp opening product removal |
