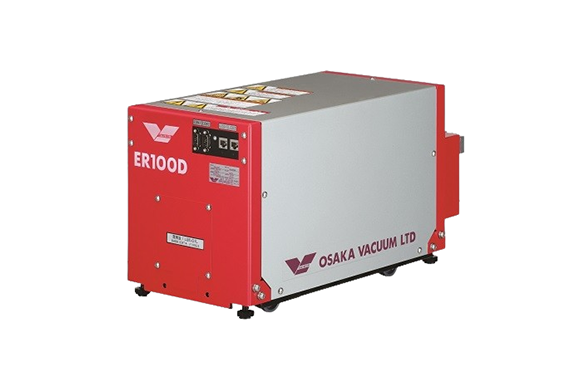

Osaka ER100D/ER100DC Dry Vacuum Pumps
Manufacturer: Osaka Vacuum, Ltd.
Model: ER100D/ER100DC
Features
- ER100D/ER100DC are among the best in the class in energy efficiency as well as lightness and compactness
- Energy consumption at ultimate pressure: 400W
- Footprint: 0.11m2
- Weight: 60kg
- Two types are available for your needs.
- ER100D: for light load, non-corrosive gas pumping
- ER100DC: employs anti-corrosive materials, for corrosive gas pumping
Specifications
| Model | ER100D/ER100DC | |
| Volume flow rate (L/min) | 1670 | |
| Base pressure (Pa) | 5.0 | |
| Energy consumption at ultimate pressure (W) | 400 | |
| Power supply | Voltage (V) | 200-220 |
| Frequency (Hz) | 50/60 | |
| Phase | Three phase | |
| Power capability (kVA) | 3.2 | |
| N2 gas purge throughput （Pa・m3/s） | 17-20 | |
| Cooling system | Water cooled | |
| Required flow rate (L/min) | 1.5-3.0 | |
| Required temperature (℃) | Max. 30 | |
| Weight (㎏) | 60 | |
[Corresponding gases]
Some types of gas to be evacuated may damage the pump.
Contact Osaka Vacuum for a list of applicable gas types.

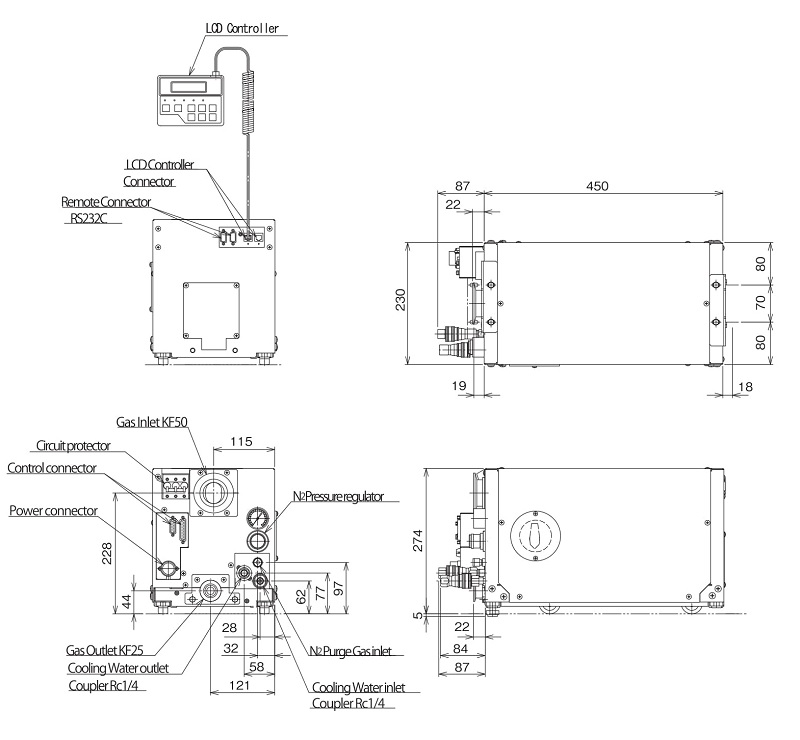

Dimensions
