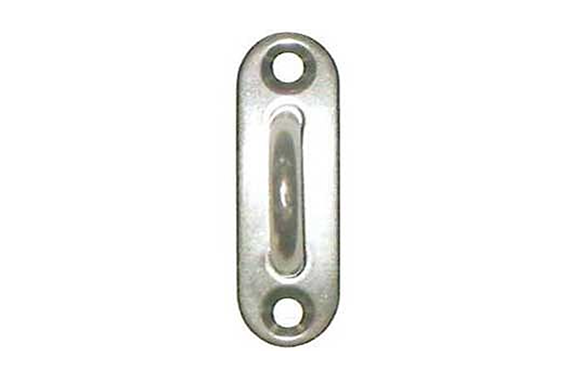

Q1-0169 Slim Eye Plate (Imported)
Model: Q1-0169
Iron (or standard), Stainless Steel (303, 304, XM7,…).
Plain, Nickel.

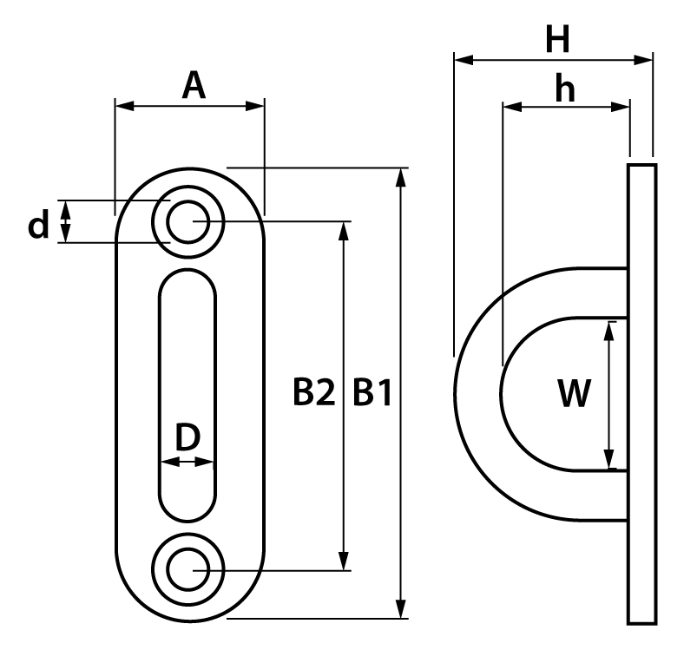

| Part Number | D | A | B1 | B2 | H | h | W | d |
|---|---|---|---|---|---|---|---|---|
| IPF1050 | 5 | 15 | 45 | 35 | 19.5 | 12.5 | 13 | 4.1 |
| IPF1060 | 6 | 20 | 60 | 46 | 24.5 | 16.5 | 18 | 5.1 |
| IPF1080 | 8 | 26 | 80 | 60 | 32 | 22 | 21 | 5.1 |
| Part Number | D | A | B1 | B2 | H | h | W | d |
|---|---|---|---|---|---|---|---|---|
| SPF1050 | 5 | 15 | 45 | 35.5 | 20 | 12 | 14 | 4.2 |
| SPF1060 | 6 | 20 | 60 | 46 | 25 | 17 | 16 | 5.2 |
| SPF1080 | 8 | 26 | 80 | 60 | 32 | 21 | 20 | 5.2 |
