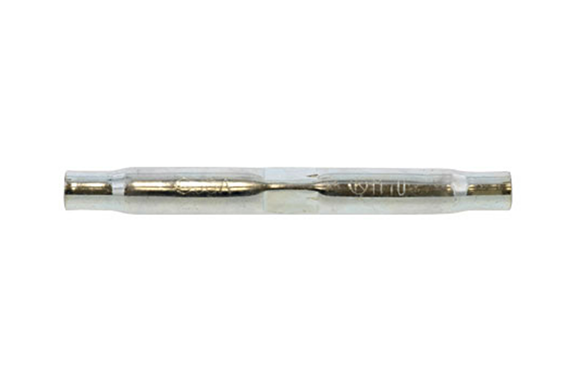

Q1-K540 JIS Pipe Type TB (Construction)
Model: Q1-K540
Iron (or standard).
Plain, Zinc blue cr6+, hot dip galvanized.

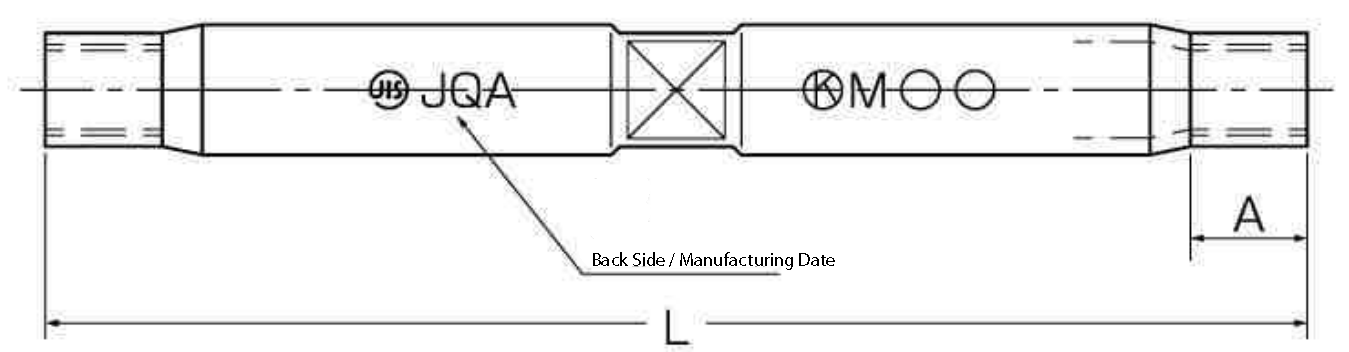

| Nominal Dia. | Total Length (L) (mm) | Head Length (A) (mm) | Min. Tensile Load kN (tf) | Guaranteed Load kN (tf) | Slotted Type Weight (kg) | Pipe Type Measured Weight (kg) |
|---|---|---|---|---|---|---|
| M10 | 150 | More than 14 | 30.9(3.2) | 14.2(1⑷ | More than 0.153 | 0.095 |
| ※M12 | 200 | More than 17 | 44.9(4.6) | 20.7(2.1) | More than 0.300 | 0.175 |
| M14 | 230 | More than 20 | 61.7(6.3) | 28.4(2.9) | More than 0.480 | 0.285 |
| M16 | 250 | More than 23 | 83.1(8.5) | 38.3(3.9) | More than 0.640 | 0.416 |
| M18 | 280 | More than 25 | 103(10.5) | 47.6(4.9) | More than 0.900 | 0.60 |
| M20 | 300 | More than 28 | 131(13.4) | 60.2(6.1) | More than 1.20 | 0.84 |
| M22 | 330 | More than 31 | 161(16.4) | 74.3(7.6) | More than 1.54 | 1.05 |
| M24 | 350 | More than 34 | 188(19.2) | 86.8(8.9) | More than 2.09 | 1.37 |
| M27 | 400 | More than 38 | 244(24.9) | 112(11.4) | More than 3.01 | 2.16 |
| M30 | 400 | More than 42 | 299(30.5) | 138(14.1) | More than 3.66 | 2.40 |
| M33 | 450 | More than 46 | 369(37.7) | 170(173) | More than 4.94 | 3.05 |
● Permanent deformation of the rod must be within 0.5% of its length (L) at the guaranteed load listed above.
● Guaranteed load corresponds to short-term permissible stress.
※ M12 slotted frame is LS type.
※ There is no weight standard for the pipe type, so the measured value is recorded.
