SUNCO

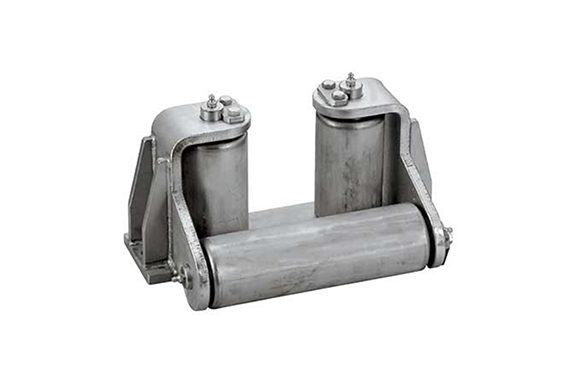

Q4-C002 Deck End Roller JIS Type
Model: Q4-C002
Stainless steel (303, 304,…).
Plain.

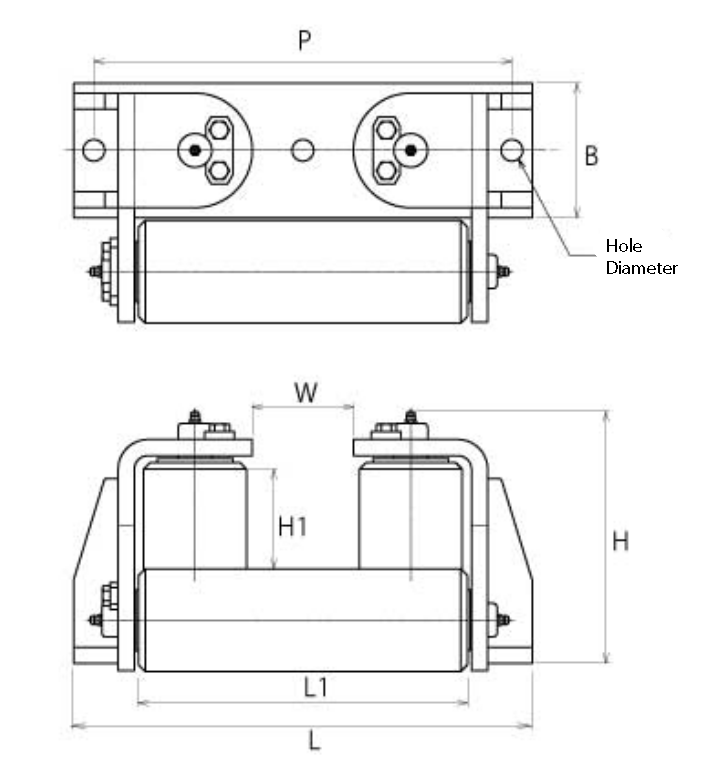

Unit: mm
| Part No. | L | L1 | B | P | W | H | H1 | Hole Dia. | Roller Dia. | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AK3312 | 340 | 234 | 100 | 310 | 83.7 | 187 | 74 | 16 | 76.3 | 20 |
| AK3313 | 450 | 300 | 125 | 400 | 122.9 | 218 | 100 | 16 | 89.1 | 33 |
