R0-0052 Tapered Shank Drill
Model: R0-0052
Iron (or standard).
Plain.
Unit: mm

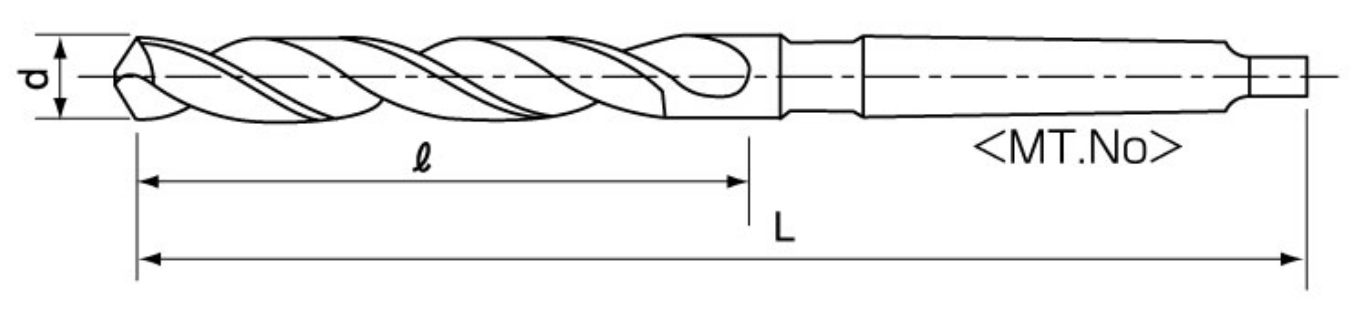

| Size (d) | Part No. | Overall Length (L) | Groove Length (ℓ) |
|---|---|---|---|
| 8.0<MTI> | TD080 | 162 | 18 |
| 8.5<MT1> | TD085 | 168 | 20 |
| 9.0<MT1> | TD090 | 172 | 20 |
| 9.5<MT1> | TD095 | 175 | 22 |
| 10.0<MTI> | TDIOO | 178 | 23 |
| 10.5<MT1> | TD105 | 182 | 23 |
| 11.0<MT1> | TD11O | 185 | 25 |
| I1.5<MT1> | TDI15 | 188 | 25 |
| 12.0<MT1> | TD12O | 192 | 28 |
| 12.5<MT1> | TD125 | 195 | 28 |
| 13.0<MT1> | TD130 | 198 | 29 |
| 13.5<MTI> | TD135 | 202 | 29 |
| 14.0<MT1> | TD140 | 205 | 33 |
| 14.5<MT2> | TD145 | 222 | 33 |
| 15.0<MT2> | TD150 | 225 | 35 |
| 15.5<MT2> | TD155 | 228 | 35 |
| 16.0<MT2> | TD160 | 230 | 37 |
| 16.5<MT2> | TD165 | 232 | 37 |
| 17.0<MT2> | TD17O | 235 | 39 |
| 17.5<MT2> | TD175 | 240 | 42 |
| 18.0<MT2> | TD180 | 240 | 42 |
| 18.5<MT2> | TD185 | 245 | 42 |
| 19.0<MT2> | TD19O | 245 | 42 |
| 19.5<MT2> | TD195 | 250 | 45 |
| 20.0<MT2> | TD200 | 250 | 45 |
| 20.5<MT2> | TD2O5 | 255 | 155 |
| 21.0<MT2> | TD210 | 255 | 155 |
| 21.5<MT2> | TD215 | 260 | 160 |
| 22.0<MT2> | TD22O | 260 | 160 |
| 22.5<MT2> | TD225 | 265 | 165 |
| 23.0<MT2> | TD230 | 265 | 165 |
| 23.5<MT3> | TD235 | 285 | 165 |
| 24.0<MT3> | TD240 | 285 | 165 |
| 24.5<MT3> | TD245 | 285 | 165 |
| 25.0<MT3> | TD250 | 285 | 165 |
| 25.5<MT3> | TD255 | 285 | 165 |
| 26.0<MT3> | TD26O | 285 | 165 |
| 26.5<MT3> | TD265 | 290 | 170 |
| 27.0<MT3> | TD270 | 290 | 170 |
| 27.5<MT3> | TD275 | 295 | 175 |
| 28.0<MT3> | TD280 | 295 | 175 |
| 28.5<MT3> | TD285 | 300 | 180 |
| 29.0<MT3> | TD290 | 300 | 180 |
| 29.5<MT3> | TD295 | 305 | 185 |
| 30.0<MT3> | TD300 | 305 | 185 |
| 30.5<MT3> | TD305 | 310 | 190 |
| 31.0<MT3> | TD310 | 310 | 190 |
| 31.5<MT3> | TD315 | 315 | 195 |
| 32.0<MT3> | TD320 | 315 | 195 |
| 32.5<MT4> | TD325 | 345 | 200 |
| 33.0<MT4> | TD33O | 345 | 200 |
| 33.5<MT4> | TD335 | 350 | 205 |
| 34.0<MT4> | TD340 | 350 | 205 |
| 34.5<MT4> | TD345 | 350 | 205 |
| 35.0<MT4> | TD35O | 350 | 205 |
| 35.5<MT4> | TD355 | 355 | 210 |
| 36.0<MT4> | TD360 | 355 | 210 |
| 36.5<MT4> | TD365 | 355 | 210 |
| 37.0<MT4> | TD37O | 355 | 210 |
| 37.5<MT4> | TD375 | 360 | 215 |
| 38.0<MT4> | TD380 | 360 | 215 |
| 38.5<MT4> | TD385 | 360 | 215 |
| 39.0<MT4> | TD390 | 360 | 215 |
| 39.5<MT4> | TD395 | 365 | 220 |
| 40.0<MT4> | TD400 | 365 | 220 |
| 40.5<MT4> | TD405 | 365 | 220 |
| 41.0<MT4> | TD410 | 365 | 220 |
| 41.5<MT4> | TD415 | 370 | 225 |
| 42.0<MT4> | TD420 | 370 | 225 |
| 42.5<MT4> | TD425 | 370 | 225 |
| 43.0<MT4> | TD430 | 370 | 225 |
| 43.5<MT4> | TD435 | 375 | 230 |
| 44.0<MT4> | TD440 | 375 | 230 |
| 44.5<MT4> | TD445 | 375 | 230 |
| 45.0<MT4> | TD450 | 375 | 230 |
| 45.5<MT4> | TD455 | 380 | 235 |
| 46.0<MT4> | TD460 | 380 | 235 |
| 46.5<MT4> | TD465 | 380 | 235 |
| 47.0<MT4> | TD470 | 380 | 235 |
| 47.5<MT4> | TD475 | 385 | 240 |
| 48.0<MT4> | TD480 | 385 | 240 |
| 48.5<MT4> | TD485 | 385 | 240 |
| 49.0<MT4> | TD490 | 385 | 240 |
| 49.5<MT4> | TD495 | 390 | 245 |
| 50.0<MT4> | TD500 | 390 | 245 |
| 51.0<MT5> | TD510 | 425 | 245 |
| 52.0<MT5> | TD520 | 430 | 250 |
| 53.0<MT5> | TD530 | 430 | 250 |
| 54.0<MT5> | TD540 | 435 | 255 |
| 55.0<MT5> | TD55O | 435 | 255 |
| 56.0<MT5> | TD560 | 440 | 260 |
| 57.0<MT5> | TD570 | 440 | 260 |
| 58.0<MT5> | TD580 | 445 | 265 |
| 59.0<MT5> | TD590 | 445 | 265 |
| 60.0<MT5> | TD600 | 450 | 270 |
| 61.0<MT5> | TD610 | 450 | 270 |
| 62.0<MT5> | TD620 | 455 | 275 |
| 63.0<MT5> | TD630 | 455 | 275 |
| 64.0<MT5> | TD640 | 460 | 280 |
| 65.0<MT5> | TD650 | 460 | 280 |
