REX Industries Co.

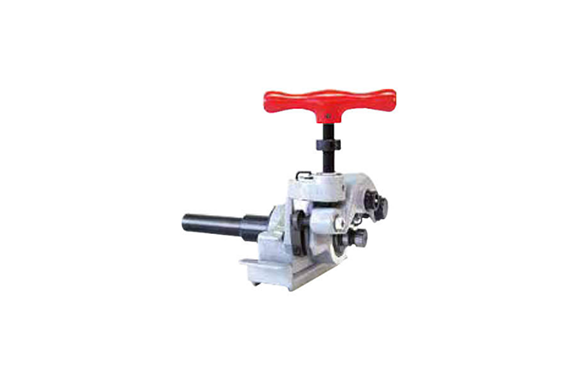

REX Portable Groover M Groovers For Steel Pipe
Manufacturer: REX Industries Co.
Model: Portable Groover M
Features
- Makes grooves on 1″ to 6″ Schedule 10 and 1″ to 3″ Schedule 40 steel pipes.
- Easily attached to REX N50A< R50A, P50A, NP50A, N80A, S80A, NP80A, N100A, #300 or 300 compact.
- Like the Light groove 150DX, groove depth is easily adjusted. Power mechanism enables grooving with minimal force.
- Compact, lightweight, excellent durability.
- Mount the groover on any of the machines simply by replacing the mount base( 5 types available).
Standard Accessories
341631 RG-S1 Mount base ( Except RG-R0) 1 pc, Connecting shaft 1 pc, Socket head cap screw ( M8 x 25) 4 pcs, Sprong washer (8mm) 4 pcs, Hex key 3, 4, 5, 6mm, Grease, Tool Box
| Code No. | Model | Applicable machine | Working Capacity | Weight (kg) |
|---|---|---|---|---|
| 341505 | RG-R0 | No Mount Base | 1″ – 6″ Sch. 10 – 20 1″ – 3″ Sch. 10 – 40 Standard Model For 2″ – 6″ Sch. 10 – 20 2″ – 3″ Sch. 10 – 40 (Roller set 341558) | 12.0 |
| 341501 | RG-R1 | N50A, R50A, P50A, NP50A | 14.5 | |
| 341502 | RG-R2 | N80A, S80A, NP80A | ||
| – | RG-R3 | N100A | ||
| 341503 | RG-E1 | #300 | ||
| 341504 | RG-E2 | 300 Compact | ||
| 341631 | RG-S1 | No Mount Base | Stainless Steel Pipe 30-150Su, 1″-6″ : Sch. 5S Standard Model S1- 30-50Su, 1″-1½” : Sch. 5S (Roller set 341635) S2- 60-150Su, 2″-6″ : Sch. 5S (Roller set 341636) | 10.0 |
| 341632 | RG-S2 | No Mount Base |
