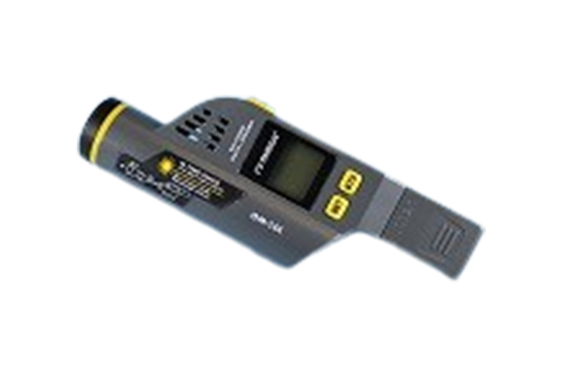

Sakaguchi 【Infrared Thermometer】Temperature/Humidity Data Logger, USB Connection 【OM-144】 |

Sakaguchi 【Infrared Thermometer】Temperature/Humidity Data Logger, USB Connection 【OM-144】

Manufacturer: Sakaguchi Electric Heaters CO., LTD.

Features

Start/stop data logging without using a computer with one button
Plug-and-play USB 2.0 interface – no cables, cradles, or docks required
Large storage capacity: 16,000 pairs of temperature and humidity readings
31⁄2-digit LCD displays temperature and RH readings, device function status, and “memory full” in real time
Built-in infrared thermometer to check vent and surface temperature
Sampling time and upper and lower temperature limits, RH alarm set points selectable using the included software
Software calculates the mixing ratio as dew point and wet bulb temperature, GPP (grains per pound) or GPK (grams per kilogram)
Export log data to Excel® or Word with one click
Since it is a manufacturer-ordered product, please contact us for delivery time.

Model number	OM-144
Ambient temperature range	-20～70℃
Ambient temperature accuracy	-10~40°C is ±1.0°C, others are ±2.0°C
Atmosphere temperature resolution	±0.1℃
Ambient temperature response time	5~30 seconds
RH measurement range	0～100％RH
RH Accuracy	20~80% ±3%RH, others ±3.5%RH
RH Resolution	0.1％RH
RH response speed	8 seconds
GPP Measurement Range	0～1,500GPP(0～285ｇ/kg)
Built-in storage capacity	1,600 readings of ambient temperature/humidity each, or 10,000 readings of ambient temperature/humidity + infrared temperature
Sample Rate	Adjustable from 10 seconds ~ 12 hours
Infrared measurement range	-20～250℃
Infrared accuracy	±3.0℃
Infrared resolution	±0.1℃
Infrared operating ambient temperature	0～40℃@1～90％RH
Spot size	2：1
Emissivity	0.95 (fixed)
Infrared response speed	0.5 seconds
Laser power	1mW (Class 2)
Dimensions	43W×125L×23mmD
Weight	200g
Power supply	3.6V lithium battery (non-rechargeable)
Battery life	About 1 year
