Sakaguchi Electric Heaters CO.

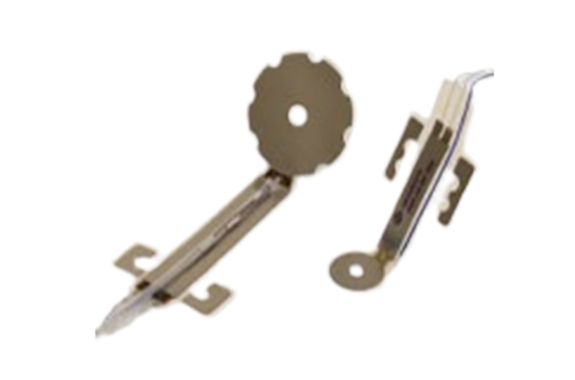

Sakaguchi 50ml/100ml beaker type Emiflon Chemical Liquid Heater
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: EMI100
Features
- The fluoropolymer material offers excellent weather resistance and chemical resistance.
- Because the heater surface is non-stick, mold and dirt are less likely to form, keeping it clean.
- Direct immersion in liquids such as chemical solutions enables rapid temperature rise and high heating efficiency.
- A built-in thermocouple allows easy and precise temperature control of chemicals and other liquids.
- In addition, the thin heating element can install at the bottom of a beaker, contributing to energy savings and space efficiency.
Specifications
| Model number | EMI100 |
|---|---|
| Service temperature | Regular liquid temperature of 80°C (this is only a guideline and the temperature at which it can be used will vary depending on the actual usage environment) |
| Minimum Liquid Volume | 20ml / 30ml |

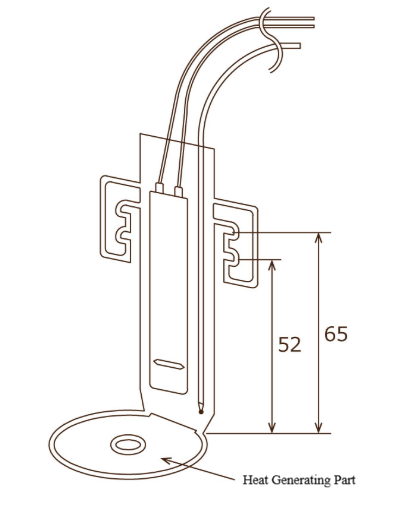

| Thickness of the heating part | 0.7mm |
| Heating part diameter | 38mm |
| Freeze frame | 48V 30W |
| Power Density | 4W/cm² |
| Lead Length | 1000mm |
| Thermocouple | K-type |
| Thermal Fuse | None |
