Sakaguchi Electric Heaters CO.

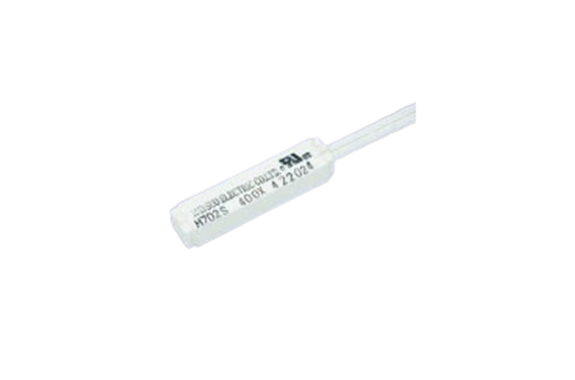

Sakaguchi Bimetal Thermostat: H702 Series
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: H702 Series
Features
Specifications
| Ratings and Characteristics | [Product Code] H702S250 | [Product Code]H702S300 |
|---|---|---|
| OFF Temperature | 250℃ | 300℃ |
| Contact configuration | X (b contact) | X (b contact) |
| Differential (*) | 25℃±7℃ | 30℃±10℃ |
| Set temperature tolerance | ±15℃ | ±20℃ |
| Lifespan | 100,000 cycles at rated load | 100,000 cycles at rated load |
| Electrical rating | 8A(AC125V) / 5A(AC250V) | 6A(AC125V) / 4A(AC250V) |
| Insulation resistance | 100MΩ or more (DC500V) | 100MΩ or more (DC500V) |
| Withstand voltage | AC2000V/2sec. (500V/1 min. between contacts) | AC2000V/2sec. (500V/1 min. between contacts) |
| Lead Color | Brown | Brown |
