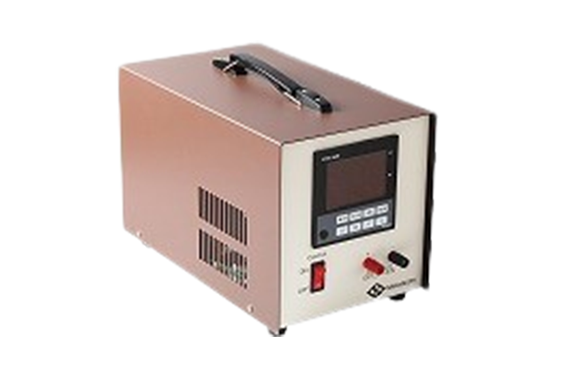

Sakaguchi BOX type Peltier exclusive temperature controller
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: BOX type
Features
Specifications
| Model number | PELCON |
|---|---|
| Input Rating | AC100V 50Hz/60Hz 5A(Max) |
| External input | DC12V~24V 16A (switched by short-circuit bar (*)) |
| Control method | PID with SSR (with auto-tuning) |
| Number of programs | 15 Patterns (Max) 6 Steps |
| Sensor input | Resistance thermometer: Pt100Ω or K thermocouple (default setting is resistance thermometer) |
| Temperature accuracy | Expressed resolution 0.1°C |
| Output rating (Peltier side) | Internal power supply: DC12V 8A(Max) Ambient temperature: 0°C~50°C Ambient humidity: 10%~90% Non-condensing external power supply: DC12V~24V 16A(Max) |
| Output rating (fan side) | Internal Power Supply: DC12V 0.5A (Max) |
| Communication Capabilities | RS485 |
| Power Switching | Select by switch plug |
| Dimensions | W180×H190×D311 (excluding protrusions) |
| Weight | 4.3kg |
