Sakaguchi Electric Heaters CO.

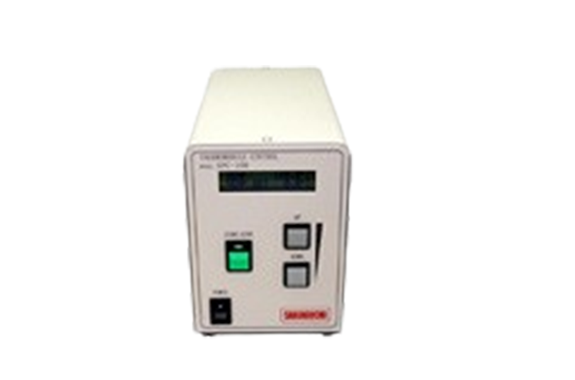

Sakaguchi Digital Peltier Controller
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Input Voltage | AC100V (85V～132V) |
|---|---|
| Power consumption | 150VA (Max) |
| Output Voltage/Current | Peltier Side DC14V/10A (Max) |
| Sensors | 3-wire platinum resistance temperature measurement (Pt100Ω) |
| Control method | PID type voltage suppression system |
| Temperature setting range | Within -50°C~+150°C (*) |
| Temperature accuracy | ±0.3°C or ±0.5% of the set value |
| Display accuracy | 0.1°C |
| Dimensions (mm) | W110×D230×H155 |
| Quality | 2.6kg |
