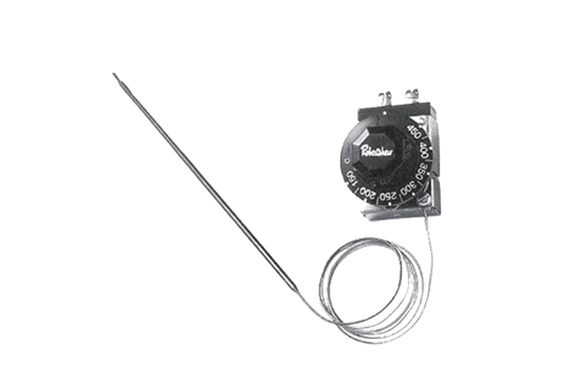

Sakaguchi EA19P Series liquid-expandable thermostat
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: EA19P Series
Specifications
| Item | Specification |
|---|---|
| Series | EA19P Series |
| Switch Type | SP–ST (Single Pole Single Throw), snap-action |
| Switching Mode | Temperature rise OFF / ON (model dependent) |
| Differential | Max. 15 °C |
| Rated Voltage | 277 VAC |
| Rated Current (Resistive Load) | 30 A |
| Rated Current (Inductive Load) | 18 A |
| Rated Current (Motor Load) | 12.5 A |
| Capillary Length | 1200 mm |
| Sensing Bulb & Capillary Material | SUS321 stainless steel |
| Allowable Sensing Bulb Temperature | Max. 520 °C |
| Manufacturer | Sakaguchi Electric Heaters |
| Model | Temperature Range (°C) | Sensing Bulb Diameter (mm) | Length A (mm) | Length B (mm) | Sensing Bulb Material | Switching Action |
|---|---|---|---|---|---|---|
| EA-19P | 150 – 450 | 3.9 | 250 | 205 | SUS321 | OFF at set temperature |
| EA-19P (REV) | 150 – 450 | 3.9 | 250 | 205 | SUS321 | ON at set temperature |
| EAC-19P | 150 – 450 | 3.9 | 250 | 205 | SUS321 | OFF at set temperature |
| EAC-19P (REV) | 150 – 450 | 3.9 | 250 | 205 | SUS321 | ON at set temperature |
