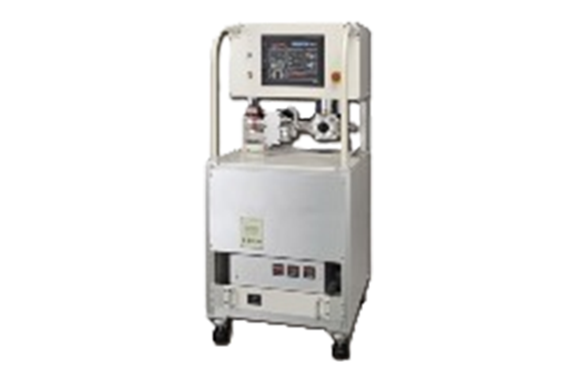

Sakaguchi ExLASER Lite

Manufacturer: Sakaguchi Electric Heaters CO., LTD.

Features

  • Compact design compared to conventional ExLASER.
  • Small area (φ0.5 inches) and 1-shot heating are realized.
  • Integrated wide rack storage. It can be moved with casters.
  • Of course, it is also easy to operate.
  • It realizes ultra-fast heating and cooling like the previous model.
  • Direct heating only to the object to be heated. It does not heat the atmosphere.

Specifications

Model No.: ELL-CT-050-FC13
Laser irradiation methodFiber TypeBody sizeH 1420mm ×W 655mm ×D 660mm
Laser powerUp to 50W (CW)EquipmentRadiation thermometer with
vacuum chamber (I.D. φ 107mm) Equipped
with TMP (10-6Pa)
Substrate holder (for φ 12.7mm)
Laser wavelength808nm
Laser ShapeCircular
Optics (uniformity)± within 10% (normal optics)
*Homogenizer optics are optional		Freeze frameAC100V　10A
Heating areaφ 13mmRemarkswide rack storageintegrated
gas introduction
Work distance150mm

REQUEST QUOTATION
