Sakaguchi Electric Heaters CO.
Sakaguchi GH201B Space heaters for switchboards and control cabinets
Manufacturer: Sakaguchi Electric Heaters CO., LTD.

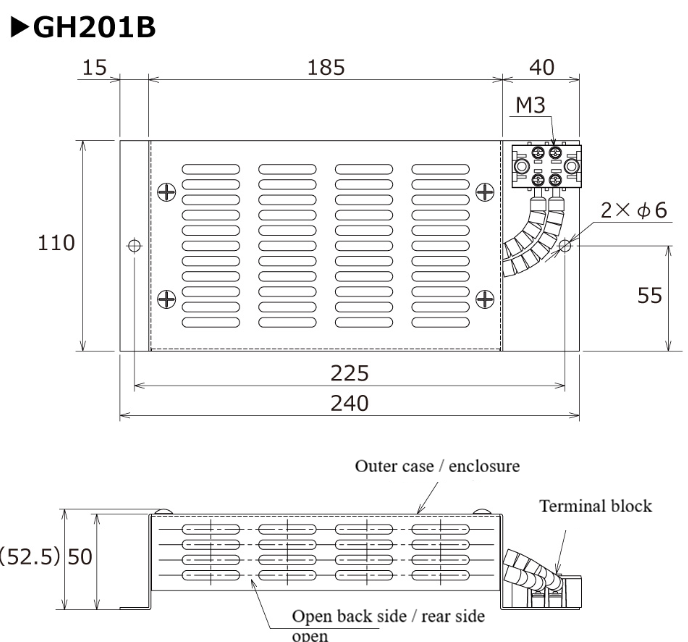

Model: GH201B
Features
Specifications
| Model number | GH201B |
|---|---|
| Rated Voltage (V) | AC100V/AC110V |
| Rated Capacity (W) | 165W/200W |
| Withstand voltage | AC1500V 1 minute |
| Rated Frequency (Hz) | 50Hz/60Hz |
| Operating temperature range (°C) | -40℃ ～+70℃ |
| Operating Humidity Range (%R.H) | 85%Rh or less (non-condensing) |
| Mass (g) | Approx. 810g |
