Sakaguchi Electric Heaters CO.

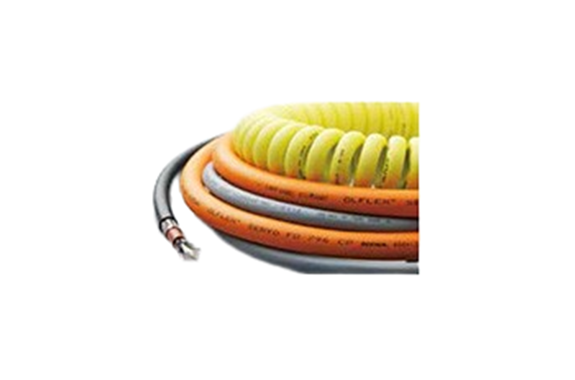

Sakaguchi heat-resistant wire ÖLFLEX® HEAT 650
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Model number | Conductor configuration | Outer Diameter (mm) | Finishing Outer Diameter (Approx.) (mm) | Allowable current (20°C) | Allowable current (650°C) | Nickel weight kg/km | Weight kg/km | |
|---|---|---|---|---|---|---|---|---|
| Cross-sectional area (mm²) | Number of wires/Diameter (mm) | |||||||
| 1232653 | 1.5 | 37 Books/0.23 | 1.38 | 3.0 | 8A | 4A | 14.8 | 23.0 |
| 1232654 | 2.5 | 37 Pieces / 0.29 | 1.78 | 3.5 | 11A | 5A | 23.5 | 34.0 |
| 1232655 | 4.0 | 32 Pieces/0.40 | 2.26 | 3.9 | 14A | 7.3A | 38.6 | 54.0 |
| 1232656 | 6.0 | 48 Pieces/0.40 | 2.76 | 4.6 | 18A | 9A | 57.9 | 84.0 |
| 1232657 | 10.0 | 80 pieces/0.40 | 3.57 | 7.8 | 26A | 13.5A | 96.5 | 120.0 |
