Sakaguchi Electric Heaters CO.

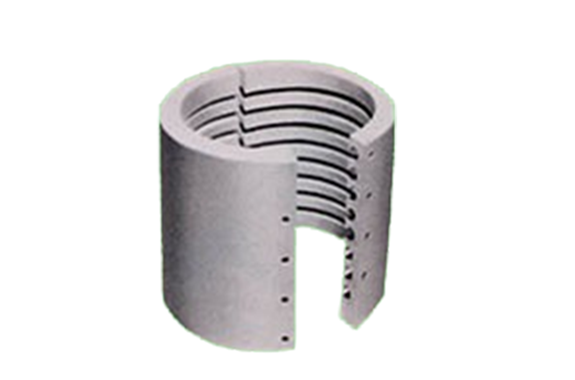

Sakaguchi Horizontal groove two-tsu round furnace
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications

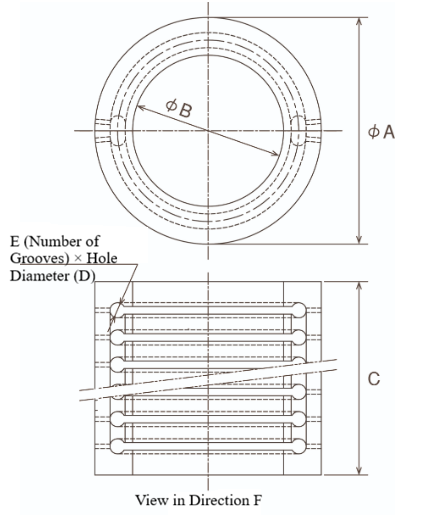

| Dimensions (mm) | Product Code | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| 130 | 80 | 300 | 9 | 12 bottles | MRY0830 (made-to-order) |
| 145 | 100 | 150 | 10 | 7 books | MRY1015 (made-to-order) |
| 145 | 100 | 200 | 10 | 10 Bottles | MRY1020 (made-to-order) |
| 172 | 125 | 200 | 10 | 10 Bottles | MRY1220 (made-to-order) |
| 190 | 140 | 200 | 10 | 10 Bottles | ★MRY1420 |
| 195 | 140 | 300 | 10 | 12 bottles | ★MRY1430 |
| 200 | 150 | 150 | 10 | 7 books | MRY1515 |
| 200 | 150 | 200 | 10 | 10 Bottles | MRY1520 |
| 205 | 150 | 300 | 11 | 12 bottles | MRY1530 (made-to-order) |
| 225 | 170 | 230 | 11 | 10 Bottles | MRY1723 |
| 225 | 170 | 300 | 11 | 12 bottles | MRY1730 |
| 265 | 200 | 290 | 15 | 10 Bottles | MRY2029 |
| 310 | 240 | 300 | 15 | 10 Bottles | MRY2430 |
