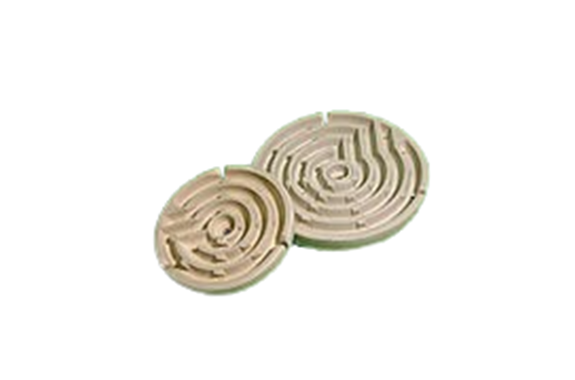

Sakaguchi Hot plate
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications

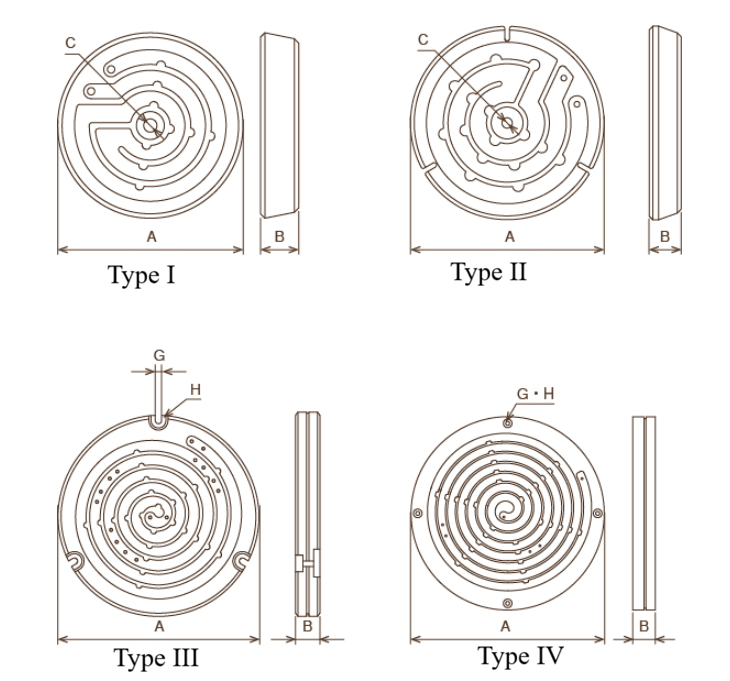

| Shape (by Type) | Product Name | Dimensions (mm) | Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D (groove width) | E (Groove Length) | F (Number of coils used) | G | H (fixed position) | |||
| Type I | 100W | 63 | 13 | 4.5 | 5 | About 290 | 1 book | ― | ― | CHM100 |
| 200W | 76 | 12 | 5 | 5 | About 390 | 1 book | ― | ― | CHM200 | |
| Type II | 300W | 100 | 17 | 5.5 | 9 | About 500 | 1 book | ― | ― | CHM300 |
| 600W | 135 | 19 | 6 | 9 | About 910 | 1~2 bottles | ― | ― | CHM600 | |
| Type III | 1000W | 190 | 23 | ― | 10 | c. 1480 | 1~3 bottles | 6 | 3×P.C.D180 | CHM1000 |
| 2000W | 240 | 29 | ― | 12 | Approx. 2200 | 1~3 bottles | 6.5 | 4×P.C.D225 | CHM2000 | |
| 3000W | 290 | 34 | ― | 9 | Approx. 2200 | 1~3 bottles | 7.5 | 4×P.C.D280 | CHM3000 | |
| Type IV | 5000W | 370 | 38 | ― | 11 | Approx. 3500 | 1~3 bottles | 6 | 4×P.C.D350 | CHM5000 |
