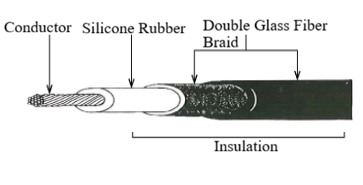

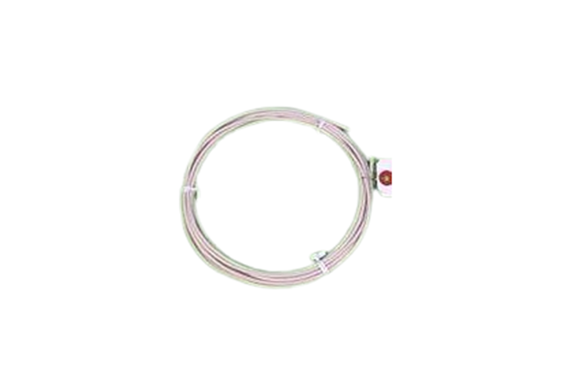

Sakaguchi LKGB Heat-Resistant Wire
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Conductor configuration | Insulator thickness (mm) | Braid thickness (mm) | Standard Finish Outer Diameter (Approx.) (mm) | Product Code | |||
|---|---|---|---|---|---|---|---|
| Cross-sectional area (mm2)) | Number of wires/wire diameter (mm) | Outer Diameter (mm) | 100m Roll | Sale | |||
| 0.75 | 30/0.18 | 1.1 | 1.1 | 0.5 | 4.3 | LKGB075 | LKGB075C |
| 1.25 | 50/0.18 | 1.5 | 4.7 | LKGB125 | LKGB125C | ||
| 2.0 | 37/0.26 | 1.8 | 5.0 | LKGB020 | LKGB020C | ||
| 3.5 | 45/0.32 | 2.5 | 5.7 | LKGB035 | LKGB035C | ||
| 5.5 | 35/0.45 | 3.1 | 6.3 | LKGB055 | LKGB055C | ||
| 8.0 | 50/0.45 | 3.7 | 6.9 | LKGB080 | LKGB080C | ||
| 14.0 | 88/0.45 | 4.9 | 1.1 | 0.6 | 8.3 | *LKGBX (made-to-order) | |
| 22.0 | 7/20/0.45 | 7.0 | 1.4 | 11.0 | |||
| 30.0 | 7/27/0.45 | 8.1 | 12.1 | ||||
| 38.0 | 7/37/0.45 | 9.1 | 13.1 | ||||
