Sakaguchi Electric Heaters CO.

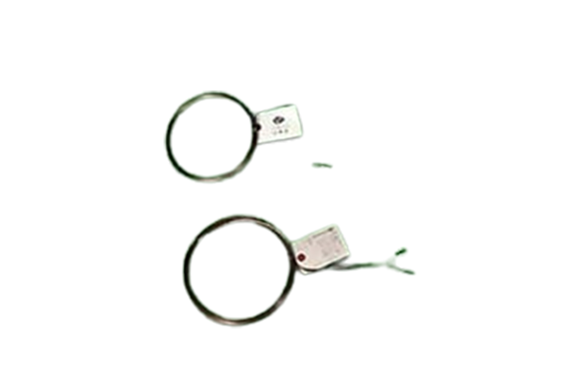

Sakaguchi M1 flexi heater
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
- The extremely thin outer diameter allows it to be installed in places where it is impossible to install it with a sheath heater.
- The heater is thin and flexible, so it can easily bend and wound. (Minimum bending radius: 3 times the outer diameter of the sheath)
- It is finished in a thin tube, and the temperature of the heating element transmit quickly due to its small heat capacity.
- The resistance per unit length is constant.
- The sheath part makes of metal tubular SUS316, so it is highly durable even at high temperatures.
Specifications

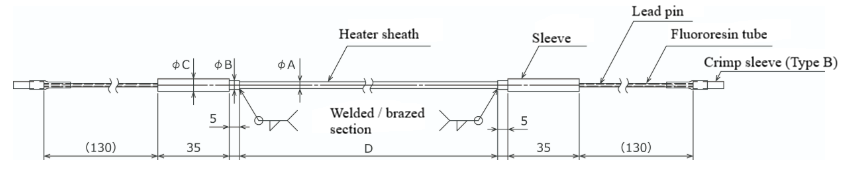

| Model | Voltage | Capacity (W) (±10%) | W Density (W/cm²) | Dimensions (mm) | Product Code | |||
|---|---|---|---|---|---|---|---|---|
| ΦA | ΦB | ΦC | D | |||||
| 1M-1-150 1M-1-300 1M-1-600 1M-1-1000 1M-1-1500 | 100V | 150 300 600 1000 1500 | 2.1 2.0 2.1 2.5 2.3 | 1.0 1.6 2.3 3.2 4.8 | 2.0 2.5 3.25 4.2 6.0 | 6.0 6.0 6.0 6.0 8.0 | 2300 3000 4000 4000 4300 | 1M1150 1M1300 1M1600 1M11000 1M11500 |
| 2M-1-300 2M-1-600 2M-1-1200 2M-1-2000 2M-1-3000 | 200V | 300 600 1200 2000 3000 | 2.0 2.0 2.1 2.4 2.3 | 1.0 1.6 2.3 3.2 4.8 | 2.0 2.5 3.25 4.2 6.0 | 6.0 6.0 6.0 6.0 8.0 | 4700 6000 8000 8300 8500 | 2M1300 2M1600 2M11200 2M12000 2M13000 |
