Sakaguchi MCA-1000E Micro Cable Air Heater Triple Tube
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: MCA-1000E
Features
- The high-efficiency, high-speed heating element uses a specially designed sheath-heater structure.
- As a result, the heating efficiency of gases is significantly improved.
- In addition, the unique internal structure reduces the surface temperature of the tube body.
- Therefore, safer operation achieves.
- Moreover, this heater is an energy-saving type.
- Compared with our conventional products, it reduces power consumption by approximately 15%.
Specifications
| Model number | MCA-1000E |
|---|---|
| Freeze frame | 200V 1KW |
| Insulation resistance | DC500V 5MΩ or more |
| Dielectric strength | AC400V 1 min Sensing current 10mA |
| Maximum operating temperature | 500°C (with built-in thermocouple) |
| Blow-out tip temperature | Refer to the temperature characteristic graph |
| Flow | 20Nℓ/min〜200Nℓ/min |
| Working gas pressure | Capable of up to 0.3MPa (3kgf/cm2) |
| Material | SUS (enclosure / flex heater / sheath thermocouple) |

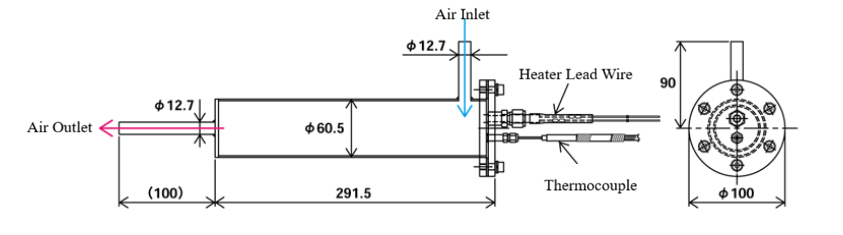

| Dimensions | φ60.5× total length 291.5mm (including flange) |
| Heated object | Air, inert gas, etc. |
| Heater lead wire | 500mm (uncut) |
| Thermocouple | K type (grounding type), 2000 mm compensating conductor (with Y terminal for M4) |
