Sakaguchi Electric Heaters CO.

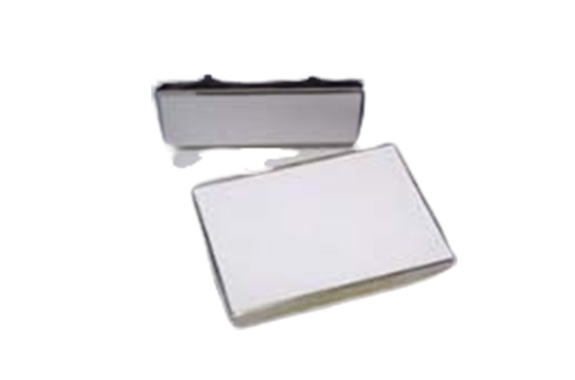

Sakaguchi PH type Far Red Ceramic Panel Heater
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: PH type
Features
Specifications
| Model number | Dimensions (mm) | Effective Heat Generation Length (mm) | Voltage (V) | Capacity (W) | Effective Watt Density (W/cm2) | Estimated Mass (kg) | Product Code | ||
|---|---|---|---|---|---|---|---|---|---|
| Width (B) | Length | Width (HL2) | Length (HL1) | ||||||
| PH−100 | 100 | 400 | 80 | 380 | 100 | 500 750 1000 | 1.6 2.5 3.3 | （1.5） | IPH100A IPH100B IPH100C |
| PH−150 | 150 | 400 | 130 | 380 | 100 100 200 100 200 | 500 750 750 1000 1000 | 1.0 1.5 1.5 2.0 2.0 | （1.9） | IPH150A IPH150B IPH150B2 IPH150C IPH150C2 |
| PH−300 | 300 | 400 | 280 | 380 | 200 | 1000 1500 2000 | 1.0 1.4 1.9 | （3.4） | IPH300A IPH300B IPH300C |
