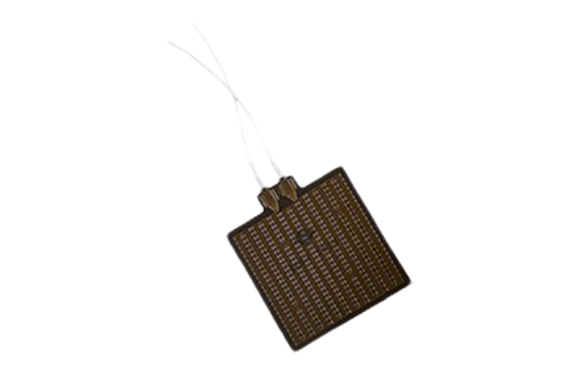

Sakaguchi PI Type Samikon Polyimide Heater

Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: PI Type

Features

The heater can be used up to 200°C due to the use of a special polyimide film with high heat resistance in the insulation material that retains the heat ray.
Uniform temperature distribution-The foil-shaped heating rays are evenly distributed on the heater surface, and the heating area occupies a large part of the heater surface area, resulting in less uneven heating and high thermal efficiency.
Environmentally friendly- By developing a manufacturing method for a terminal structure that takes advantage of the characteristics of thin heaters, the connection between the lead wire and the terminal part is not a soldering method, but a lead-less ecological heater, making it an environmentally friendly ecological heater.
Since no adhesive is used to bond the low-outgassing- insulation, the heater produces very little outgassing. In addition, siloxane gas is not generated, so it can be used in environments where its generation is disliked.
Fast temperature rise response- The heater has a particularly fast temperature rise response due to the very thin insulation thickness of less than 0.2 mm and the small heat capacity.
Wide range of circuit designs- Precise etching allows for changes in circuit distribution and shape, allowing for the design of heat distribution according to the application.

Voltage and Capacitance	100V 100W
Product Code	PI-A1010

Heater surface temperature	Regular 250°C (is only a guideline, and the temperature at which it can be used will vary depending on the actual usage environment)
Voltage	100V～200V
Power Density	(1) When hung in still air: 1.0 w/cm² max (2) When in close contact with a heated object: 1.5 w/cm² max
Insulation resistance	Over 100 MΩ at 500 V DC mega
Thickness	0.2 mm or less (excluding lead connections)
Fabrication Dimensions	20×20mm ~ 300×300mm (Other dimensions can be produced depending on the specification)
