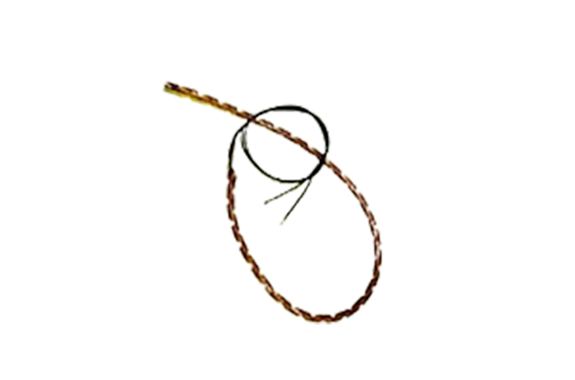

Sakaguchi PM Curl Heater
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications

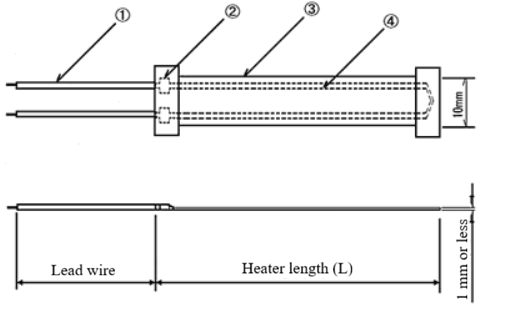

| Number | Product Name | Materials | Remarks |
|---|---|---|---|
| ① | Lead Wire | Fluoropolymer Wire | Black Max250°C Non-flammable 1.25sq 500mm |
| ② | Terminals | Nickel | Spot welding |
| ③ | Insulation layer | Polyimide Film | Brown Max250°C Non-flammable 1mm or less Excluding both terminals |
| ④ | Heating element | Nickel-chromium | NiCr |
| Model Number/Code | Product Name | Capacity | Heater Dimensions (mm) | Remarks |
|---|---|---|---|---|
| PMC1 | 100V | 30W | 10 pieces× 1000L×0.25t | lead wires; Fluoropolymer Electrical Wire 1.25sq×500mm Applicable Piping; Φ6.35~(MinΦ4mm) Vacuum reached;5×10-6torr (reference value) |
| PMC2 | 100V | 60W | 10 pieces× 2000L×0.25t |
