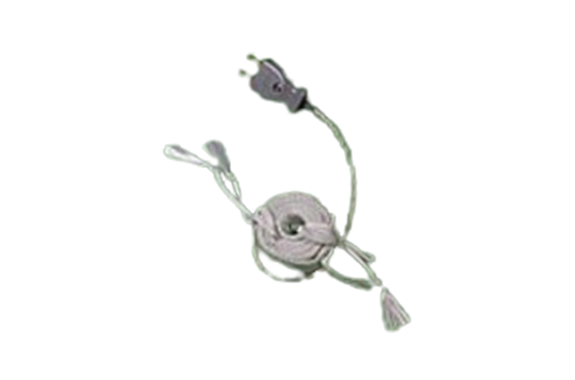

Sakaguchi Ribbon Heater

Manufacturer: Sakaguchi Electric Heaters CO., LTD.

Features

The mounting strings on the left and right sides of the heater make it easy to attach and detach, easy to handle, and heats up quickly.
It is a heater that tapes and very flexible. It is ideal for heating and keeping industrial thin, thick, bent pipes, deformed vessels, tanks, etc.
A wide range of standard sizes allows you to select the most suitable heater for heating. You can freely design custom-made products other than the standard.
The heating wires are evenly woven into heat-resistant fibers. Therefore, it has excellent insulation when heated, so you can use it with confidence.

Insulation layer	Fiberglass
Heating Wire	Glass-coated nichrome wire
Voltage	AC100V/200V

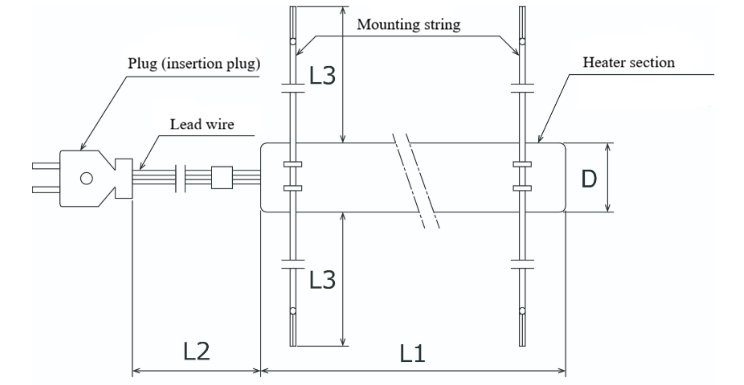

Ribbon Width (D)	20mm～30mm
Length (L1)	1000mm～2000mm
Lead Length (L2)	100V Specification: 350±20mm 200V Specification: 500±20mm
String Length (L3)	100V Specification: 250±20mm 200V Specification: 270±20mm
Connectors	100V specification: Single lead flat plug with plug 200V specification: Lead wire cut without plug
Operating temperature (*Approximate)	Normal 300°C (Heater surface temperature: up to 400°C)

Voltage (V)	Capacity (W)	Watt density (W/^cm2)	Dimensions (mm)		Product Code
Voltage (V)	Capacity (W)	Watt density (W/^cm2)	Width (D)	Length (L1)	Product Code
100	100	0.5	20	1000	C102010N
100	100	0.4	25	1000	C102510
100	100	0.3	30	1000	C103010
100	100	0.3	20	2000	C102020
100	100	0.2	25	2000	C102520
100	100	0.2	30	2000	C103020
100	150	0.8	20	1000	C152010N
100	150	0.6	25	1000	C152510
100	150	0.5	30	1000	C153010
100	150	0.4	20	2000	C152020
100	150	0.3	25	2000	C152520
100	150	0.3	30	2000	C153020
100	200	1.0	20	1000	C202010N
100	200	0.8	25	1000	C202510
100	200	0.7	30	1000	C203010N
100	200	0.5	20	2000	C202020N
100	200	0.4	25	2000	C202520N
100	200	0.4	30	2000	C203020
100	300	1.5	20	1000	C302010N
100	300	1.2	25	1000	C302510N
100	300	1.0	30	1000	C303010
100	300	0.8	20	2000	C302020N
100	300	0.6	25	2000	C302520N
100	300	0.5	30	2000	C303020N

Voltage (V)	Capacity (W)	Watt density (W/^cm2)	Dimensions (mm)		Product Code
Voltage (V)	Capacity (W)	Watt density (W/^cm2)	Width (D)	Length (L1)	Product Code
200	100	0.4	25	1000	C1025102
200	100	0.2	25	2000	C1025202
200	200	0.8	25	1000	C2025102
200	200	0.4	25	2000	C2025202
200	300	1.2	25	1000	C3025102
200	300	0.6	25	2000	C3025202
