Sakaguchi Electric Heaters CO.

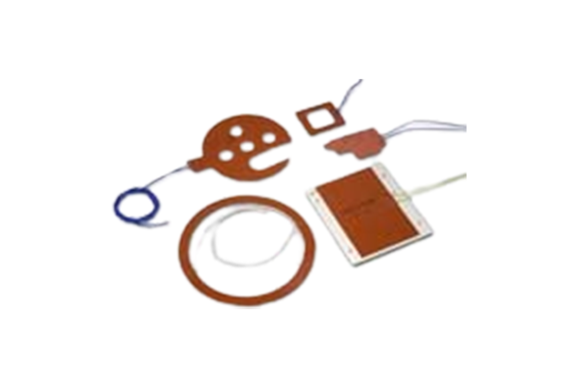

Sakaguchi Samicon 230 Angular Shape
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: Samicon 230
Features
Specifications
| Heating element | Iron-chrome alloy foil and SUS alloy foil |
|---|---|
| Insulation layer | Silicone rubber with glass cloth |
| Lead Wire | Silicone Glass Heat Resistant Wire |
| Operating temperature range | -55°C~230°C (MAX: Surface) |
| Power tolerance | ±10% |
| Insulation resistance | More than 100MΩ at DC500V meggers |
| Withstand voltage | 150V or less 1000V/min 150V more than 150V/min |
| Thickness | 1mm (excluding terminals) |
| Width× Length (mm) | Voltage (V) | Capacity (W) | Watt density (W/cm2) | Code Number |
|---|---|---|---|---|
| 23×100 | 100 | 20 | 0.9 | SAM0210 |
| 30×100 30×200 30×300 30×400 | 100 100 100 100 | 30 60 90 120 | 1.0 1.0 1.0 1.0 | SAM0310 SAM0320 SAM0330 SAM0340 |
| 50×50 50×100 50×200 50×300 50×400 | 100 100 100 100 100 | 30 50 100 120 140 | 1.2 1.0 1.0 0.8 0.7 | SAM055 SAM0510 SAM0520 SAM0530 SAM0540 |
| 70×100 70×200 70×300 70×400 | 100 100 100 100 | 70 140 200 250 | 1.0 1.0 1.0 0.9 | SAM0710 SAM0720 SAM0730 SAM0740 |
| 100×100 100×200 100×300 100×400 | 100 100 100 100 | 100 200 260 300 | 1.0 1.0 0.9 0.8 | SAM1010 SAM1020 SAM1030 SAM1040 |
| 130×100 130×200 130×300 130×400 | 100 100 100 100 | 130 260 330 430 | 1.0 1.0 0.8 0.8 | SAM1310 SAM1320 SAM1330 SAM1340 |
| 150×100 150×200 150×300 150×400 | 100 100 100 100 | 150 300 400 550 | 1.0 1.0 0.9 0.9 | SAM1510 SAM1520 SAM1530 SAM1540 |
| 50×100 50×200 100×100 100×200 | 200 200 200 200 | 50 100 100 200 | 1.0 1.0 1.0 1.0 | SAM05102 SAM05202 SAM10102 SAM10202 |
