Sakaguchi Electric Heaters CO.

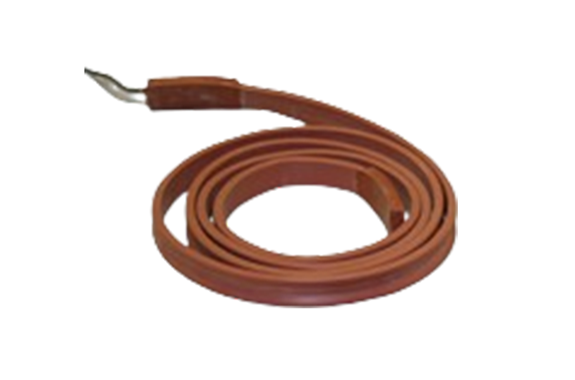

Sakaguchi SBH Type Silicone belt heater
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: SBH Type
Features
Specifications
| Material | Heat-resistant silicone rubber |
|---|---|
| Operating temperature (*) | -50℃～180℃ |
| Insulation resistance | More than 100 MΩ at 500 mega DC |
| Insulation Voltage | Less than 150V AC1000V/1 minute Anything more than 150V AC1500V1 minutes |
| Connection Tensile Strength | 30N(3.06kgf) |
| Product Code | Length (mm) | Voltage (V) | Capacity (W) | Capacity per 1m (W/m) |
|---|---|---|---|---|
| SBH15 | 1,000 | 100 | 50 | 50 |
| SBH115 | 1,500 | 100 | 150 | 100 |
| SBH125 | 2,500 | 100 | 250 | 100 |
| SBH150 | 5,000 | 100 | 500 | 100 |
| SBH25 | 1,000 | 200/100 | 50/12.5 | 50/12.5 |
| SBH26 | 2,500 | 200/100 | 60/15 | 24/6 |
| SBH215 | 1,500 | 200/100 | 150/37.5 | 100/25 |
| SBH225 | 2,500 | 200/100 | 250/62.5 | 100/25 |
| SBH250 | 5,000 | 200/100 | 500/125 | 100/25 |
