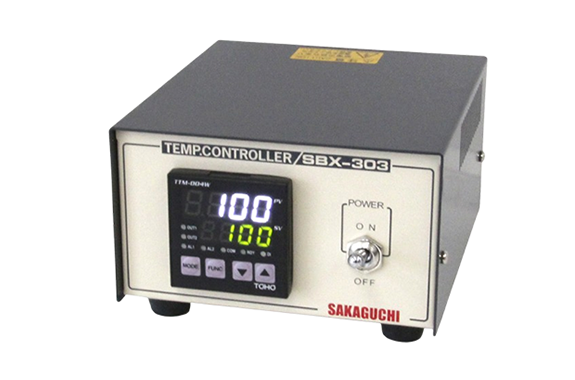

Sakaguchi SBX-303 Series Tabletop Temperature Controller

Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: SBX-303 Series

Features

  • It can use up to 12A.
  • You can control it according to your wishes, such as the application and control method.
    The factory control operation is set to PID control with auto-tuning, but it can also switch to ON/OFF control.
    (For other settings, please refer to the instruction manual)
  • The set temperature range is 0°C~400°C and can change with the front key.
    (Factory set to 400°C)

Specifications

Product NameSBX-303-004W-0PSBX-303-004W-0P-P2SBX-303-004W-0RSBX-303-004-0R-P2
Input Power Supply100V200V100V200V
Sensor inputK thermocoupleK thermocoupleK thermocoupleK thermocouple
Output methodSSR(P)SSR(P)Relay Contacts (R)Relay Contacts (R)
Output capacity12A12A12A12A
Set temperature range
(factory)
0°C~400°C (temperature range can be variable)
RepresentationPV: 4 digits White
SV: 4 digits Green
PV: 4 digits White
SV: 4 digits Green
PV: 4 digits White
SV: 4 digits Green
PV: 4 digits Green
SV: 4 digits Red
Quality1108g1108g1135g1135g
Product CodeSBX30304WK1SSBX30304WK2SSBX30304WK1SBX30304K2
