Sakaguchi Electric Heaters CO.

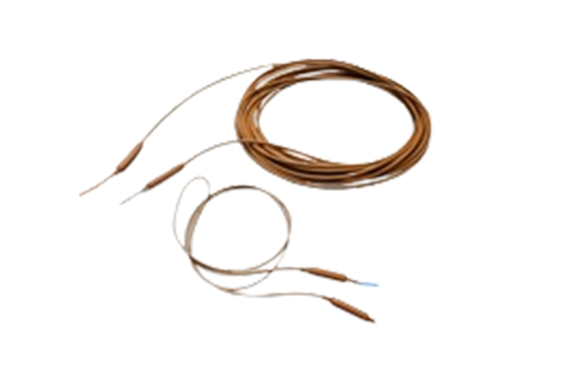

Sakaguchi Silicone Cord Heater
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Material | Heat-resistant silicone rubber |
|---|---|
| Operating temperature (*) | -50℃～180℃ |
| Withstand voltage | Withstand 1500V for 1 minute |
| Insulation resistance | 100MΩ or more |
| Connection Tensile Strength | 30N(3.06kgf) |
| Product Code | Product code (m cut) | Resistance (Ω/m) | Heater diameter (φ) |
|---|---|---|---|
| SIL25 | SIL25C | 25 | 2.5 |
| SIL50 | SIL50C | 50 | 2.5 |
| SIL100 | SIL100C | 100 | 2.5 |
| SIL200 | SIL200C | 200 | 2.5 |
| Product Code | Length (mm) | Lead Color | Voltage (V) | Capacity (W) | Capacity per 1m (W/m) | Heater Wire Diameter (φ) | Lead Connection (φ×L) |
|---|---|---|---|---|---|---|---|
| SIL116 | 1,000 | White/Blue | 100 | 16 | 16.0 | 2～3 | 6.5×37 |
| SIL125 | 2,000 | White/Blue | 100 | 25 | 12.5 | 2～3 | 6.5×37 |
| SIL10206 | 6,000 | White/Grey | 100 | 200 | 33.3 | 2～3 | 8×37 |
| SIL10307 | 7,500 | White/Grey | 100 | 300 | 40.0 | 2～3 | 8×37 |
| SIL10310 | 10,000 | White/Grey | 100 | 300 | 30.0 | 2～3 | 8×37 |
| SIL10315 | 15,000 | White/Grey | 100 | 300 | 20.0 | 2～3 | 8×37 |
| SIL10203 | 3,000×2 | White/Grey | 100 | 266 | 44.3 | 2～3 | 10×38 |
| SIL20206 | 6,000 | Red/Grey | 200/100 | 200/50 | 33.3/8.3 | 2～3 | 8×37 |
| SIL20307 | 7,500 | Red/Grey | 200/100 | 300/75 | 40.0/10 | 2～3 | 8×37 |
