Sakaguchi Electric Heaters CO.

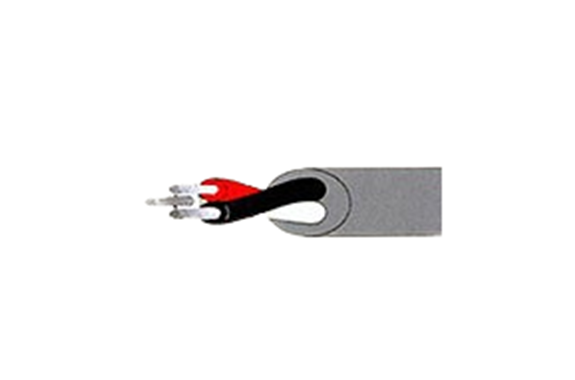

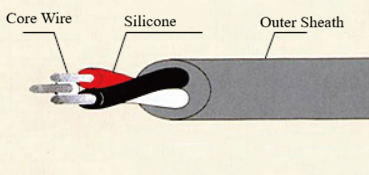

Sakaguchi Silicone Rubber Cab Tire Cable
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Heart line composition | Insulator Thickness (mm) | Finish OD 3 cores (mm) | Core Resistance (20°C Max) (Ω/Km) | Insulation resistance (20°C min.) (MΩ・Km) | Test Voltage (AC) V/min | Product Code | ||
|---|---|---|---|---|---|---|---|---|
| Nominal Cross-sectional Area (mm2) | Number of Wires/Wire Diameter (Wire/mm) | Outer Diameter (mm) | ||||||
| 1.25 | 50/0.8 | 1.5 | 1.1 | 11.0 | 16 | 100 | 1500 | SRCT-125-3C |
| 2.0 | 37/0.26 | 1.8 | 1.1 | 11.6 | 10.2 | 100 | 1500 | SRCT-20-3C |
