Sakaguchi Electric Heaters CO.

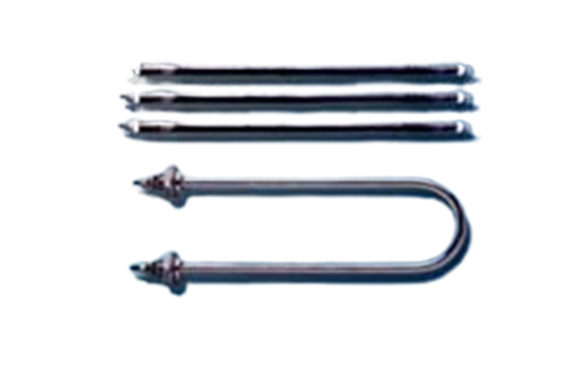

Sakaguchi Straight heater sheath material: SUS304
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications

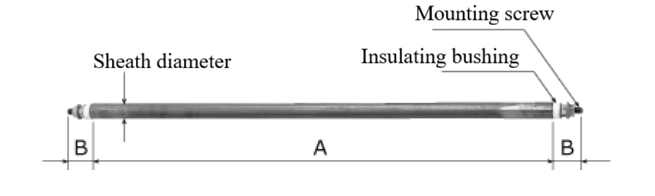

| Product Code | Voltage | Capacity | Ａ | B | Sheath diameter | Mounting screw |
|---|---|---|---|---|---|---|
| STH90751 | 100V | 300w | 750 | 20 | φ9 | M4 |
| STH00551 | 100V | 1kw | 550 | 20 | φ10 | M4 |
| STH00552 | 200V | 1kw | 550 | 20 | φ10 | M4 |
| STH20201 | 100V | 200w | 200 | 23 | φ12 | M5 |
| STH20301 | 100V | 300w | 300 | 23 | φ12 | M5 |
| STH20351 | 100V | 300w | 350 | 23 | φ12 | M5 |
| STH20601 | 100V | 400w | 600 | 23 | φ12 | M5 |
| STH20801 | 200V | 1kw | 800 | 23 | φ12 | M5 |
| STH21001 | 100V | 300w | 1000 | 23 | φ12 | M5 |
| STH21201 | 100V | 500w | 1200 | 23 | φ12 | M5 |
| STH21501 | 100V | 500w | 1500 | 23 | φ12 | M5 |
| STH4035Y※ | 116V | 1kw | 350 | 23 | φ14.5 | M5 |
| STH40352 | 200V | 1kw | 350 | 23 | φ14.5 | M5 |
| STH40702 | 200V | 2kw | 700 | 23 | φ14.5 | M5 |
| STH60601▲ | 100V | 400w | 600 | 23 | φ16 | M5 |
| STH62001※ | 100V | 800w | 2000 | 23 | φ16 | M5 |
| STH62501▲ | 100V | 800w | 2500 | 23 | φ16 | M5 |
