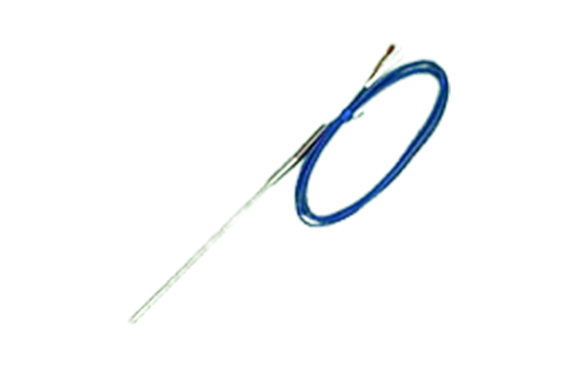

Sakaguchi T-35 Sheathed Thermocouple K Type
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: T-35
Features
Specifications
| Tolerance | JIS Class 2 |
|---|---|
| Sheath material | SUS316 |
| Compensation Conductor | Heat-resistant glass coating (blue) 0.5sq (sheath outer diameter up to φ3.2) 1.25sq (sheath outer diameter φ4.8) |
| Starting power | Compliant with JIS C 1605 |
| Heat-resistant temperature | Sheath | Sleeve | Product Code | |||
|---|---|---|---|---|---|---|
| Outer Diameter (φD) | Length (L) | Diameter (φSD) | Length (SL) | Grounded Type | Non-grounded | |
| ～650℃ | 1.0 | 100 200 300 500 1000 | φ6.4 | 36 | T35101 T35102 T35103 T35105 T351010 | T35101H T35102H T35103H T35105H T351010H |
| ～650℃ | 1.6 | 100 200 300 500 1000 | φ6.4 | 36 | T35161 T35162 T35163 T35165 T351610 | T35161H T35162H T35163H T35165H T351610H |
| ～750 | 2.3 | 100 200 300 500 1000 | φ8.0 | 36 | T35231 T35232 T35233 T35235 T352310 | T35231H T35232H T35233H T35235H T352310H |
| ～750℃ | 3.2 | 100 200 300 500 1000 | φ8.0 | 36 | T35321 T35322 T35323 T35325 T353210 | T35321H T35322H T35323H T35325H T353210H |
| ～800℃ | 4.8 | 100 200 300 500 1000 | φ10.0 | 43 | T35481 T35482 T35483 T35485 T354810 | T35481H T35482H T35483H T35485H T354810H |
