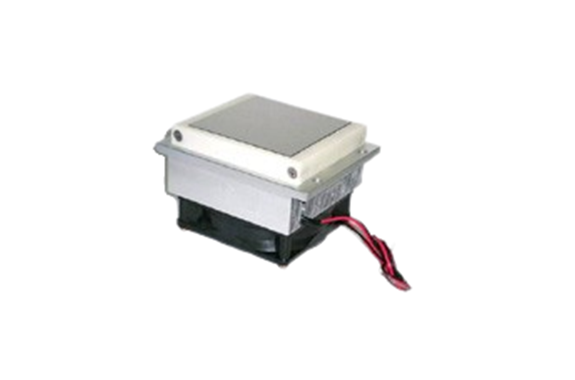

Sakaguchi TKG-311-130 Peltier Unit
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Model: TKG-311-130
Features
Specifications
| Cooling method | Electronic cooling system with thermo module. |
|---|---|

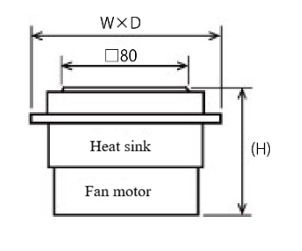

| Dimensions (mm) | W120×D100×（H79） |
| Plate Dimension (mm) | 80×80 |
| Plate surface temperature (°C) | -16℃～80 |
| Peltier Element Rating | Maximum Voltage: DC12V Maximum Current: 6.0A Maximum Heat Absorption: 31W (*) |
| Heat release method (forced air cooling) | Fan Motor DC12V (±15%) |
