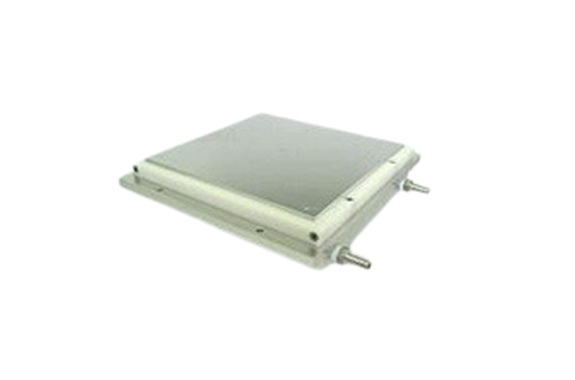

Sakaguchi TKG-8010-100 (Water Cooled) Peltier Unit
Manufacturer: Sakaguchi Electric Heaters CO., LTD.
Features
Specifications
| Cooling method | Electronic cooling system with thermo module. |
|---|---|

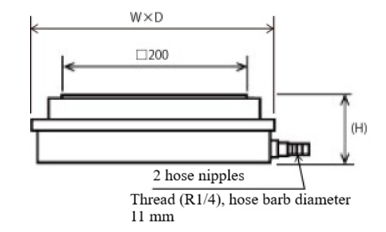

| Dimensions (mm) | W250×D230×（H48） |
| Plate Dimension (mm) | 200×200 |
| Plate surface temperature (°C) | -25～+80 |
| Peltier Element Rating | Maximum Voltage: DC24V Maximum Current: 12.0A Maximum heat absorption: 127W (*) |
| Heat dissipation method | Water-cooled heat sink |
